TVS | Status : Active
Automotive

SM6S24AHE3

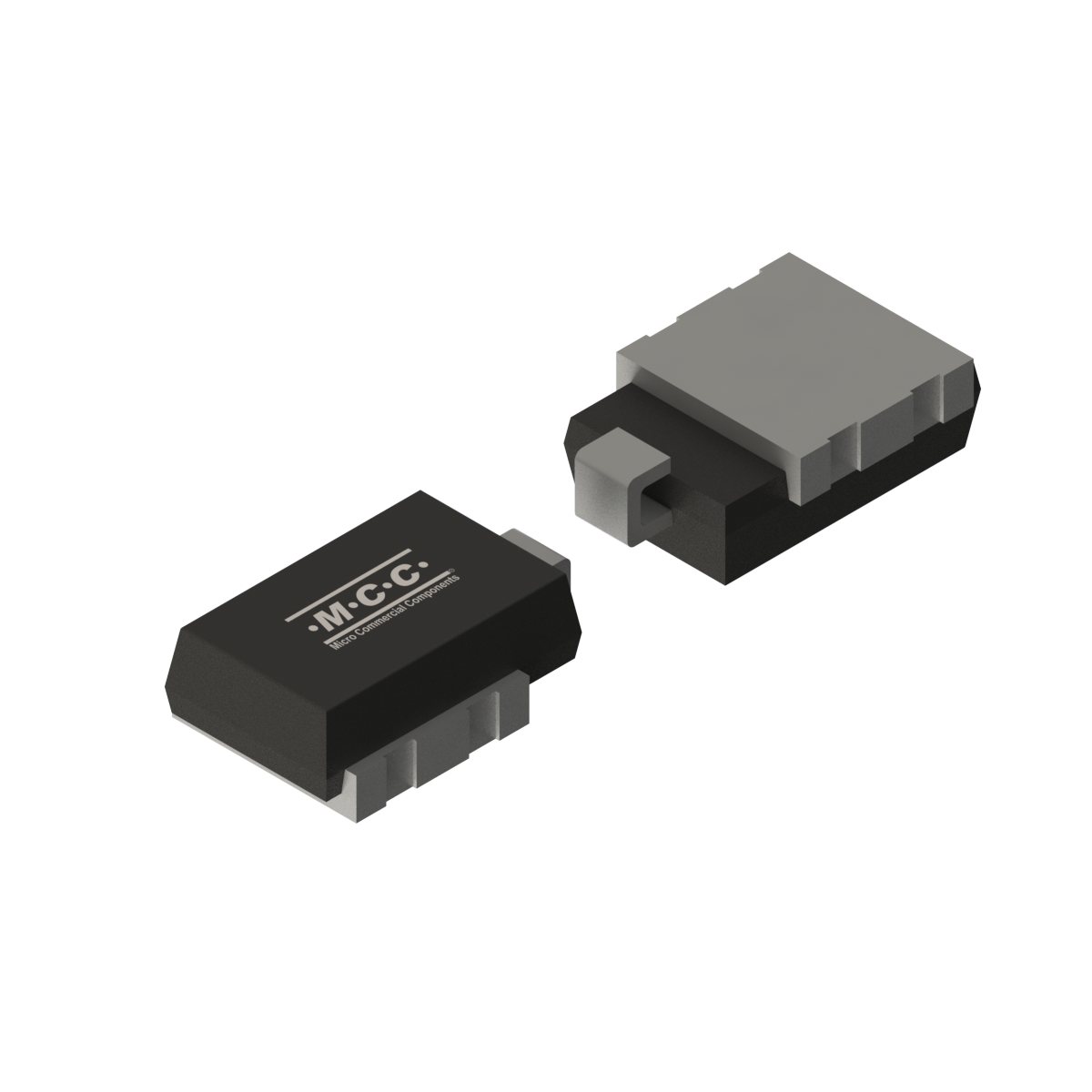

  • Package Type:DO-218AB
  • Packing Info:Tape&Reel: 750pcs/Reel;
  • Category:TVS
Check Stock Add To Cart
Datasheet ECAD Model

Product Detail

Part Number Configuration Peak Pluse
Power
Dissipation
PPPM (W)		 Reverse
Standoff
Voltage
VRWM(V)		 Reverse
Leakage
IR(uA)		 Max.
Clamping
Voltage
VC (V)		 Peak Pulse
Current
IPP(A) 		Breakdown
Voltage
Min VBR(V)		 Breakdown
Voltage
Max VBR(V)		 Junction
Temperature
Tj [max] (°C)
SM6S24AHE3 Unidirectional 4600 24 150 38.9 118 26.7 29.5 175
Part Number SM6S24AHE3 Configuration Unidirectional Peak Pluse
Power
Dissipation
PPPM (W)  4600 		Reverse
Standoff
Voltage
VRWM(V)  24 		Reverse
Leakage
IR(uA)  150 		Max.
Clamping
Voltage
VC (V)  38.9 		Peak Pulse
Current
IPP(A)  118 		Breakdown
Voltage
Min VBR(V)  26.7 		Breakdown
Voltage
Max VBR(V)  29.5 		Junction
Temperature
Tj [max] (°C)  175

Packing Information

Part Number Package Type Packing Specification Component Weight (g) Marking Code Packing Info
SM6S24AHE3 DO-218AB DO-218AB 2.8600 SM6S24A Tape&Reel: 750pcs/Reel;

Environmental Information link icon

Reliability Report Material Composition Data Sheet Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Configuration image Download Environmental Compliance Download
Tin Whisker Test Report MSL
Tin Whisker Test Report 1
