IGBT Discrete | Status : Active

MIW40N65RA

Check Stock Add To Cart
Datasheet ECAD Model

Product Detail

Part Number Number of Functions Collector‐Emitter
Voltage
VCE (V)		 DC Collector Currentt
@ Tc=100°C
IC (A)		 Collector‐Emitter
Saturation Voltage
VCE(sat) (V)		 Turn-On
Energy@TJ=25°C
Eon (mJ)		 Turn‐Off
Energyy@TJ=25°C
Eoff (mJ)		 Junction
Temperature
Tj [max] (°C)		 Power
Rating
PD(W)
MIW40N65RA Single 650 40 2.4 1.6 0.88 175 306
Part Number MIW40N65RA Number of Functions Single Collector‐Emitter
Voltage
VCE (V)  650 		DC Collector Currentt
@ Tc=100°C
IC (A)  40 		Collector‐Emitter
Saturation Voltage
VCE(sat) (V)  2.4 		Turn-On
Energy@TJ=25°C
Eon (mJ)  1.6 		Turn‐Off
Energyy@TJ=25°C
Eoff (mJ)  0.88 		Junction
Temperature
Tj [max] (°C)  175 		Power
Rating
PD(W)  306

Packing Information

Part Number Package Type Packing Specification Component Weight (g) Marking Code

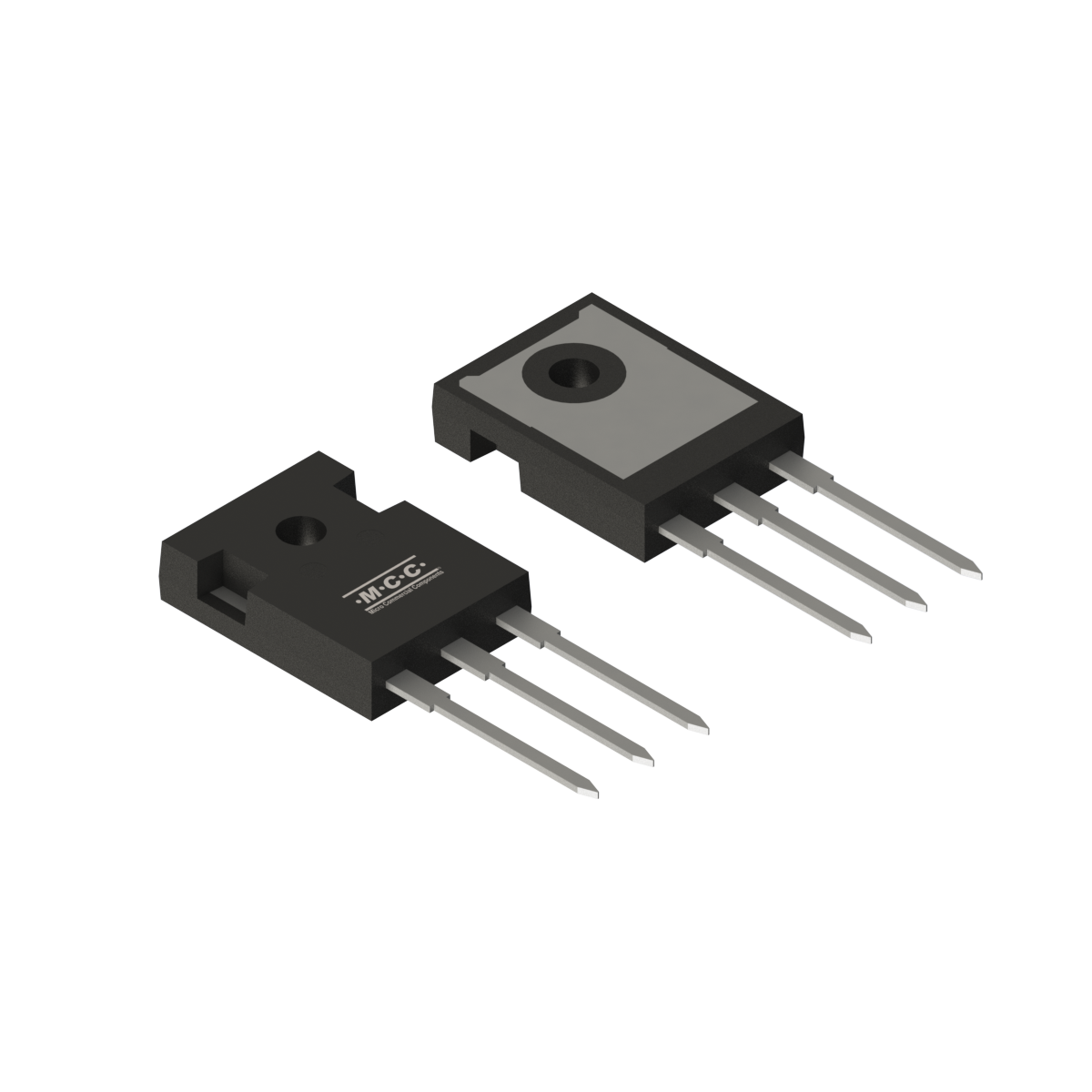

MIW40N65RA Package Type Image TO-247AB TO-247AB 5.6000 MIW40N65RA

Environmental Information link icon

Reliability Report Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Environmental Compliance Download
