MCGWF20P06YHE3

Part Number	Number of Functions	Channel	Drain-Source Voltage V_DS (V)	Gate-Source Voltage V_GS (V)	Drain Current I_D (A)	Drain-Source On-Resistance RDS(ON) Max @VGS=10V (Ω)	Drain-Source On-Resistance RDS(ON) Max @VGS=4.5V (Ω)	Drain-Source On-Resistance RDS(ON) Max @VGS=2.5V (Ω)	Gate Threshold Voltage VGS(th) Min (V)	Gate Threshold Voltage VGS(th) Max (V)	ESD Diodes	Junction Temperature Tj [max] (°C)	Single Pulsed Avalanche Energy E_AS(mJ)	Pulsed Drain Current I_DM(A)	Input Capacitance Ciss(pF)	Output Capacitance Coss(pF)	Power Rating P_D(W)	Total Gate Charge Qg(nC)	Gate-Drain Charge Qgd(nC)
MCGWF20P06YHE3	Single	P	-60	±20	-20	0.026	0.039		-1	-2.5	No	150	108	-80	1483	317	39	25	4.1

Part Number MCGWF20P06YHE3

Number of Functions Single

Channel P

Drain-Source
Voltage
V_DS (V) -60

Gate-Source
Voltage
V_GS (V) ±20

Drain
Current
I_D (A) -20

Drain-Source
On-Resistance
RDS(ON)
Max
@VGS=10V (Ω) 0.026

Drain-Source
On-Resistance
RDS(ON)
Max
@VGS=4.5V (Ω) 0.039

Drain-Source
On-Resistance
RDS(ON)
Max
@VGS=2.5V (Ω)

Gate
Threshold
Voltage
VGS(th)
Min
(V) -1

Gate
Threshold
Voltage
VGS(th) Max
(V) -2.5

ESD
Diodes No

Junction
Temperature
Tj [max]
(°C) 150

Single Pulsed
Avalanche
Energy
E_AS(mJ) 108

Pulsed Drain
Current
I_DM(A) -80

Part Number	Package Type	Packing Specification	Component Weight (g)	Marking Code	Packing Info

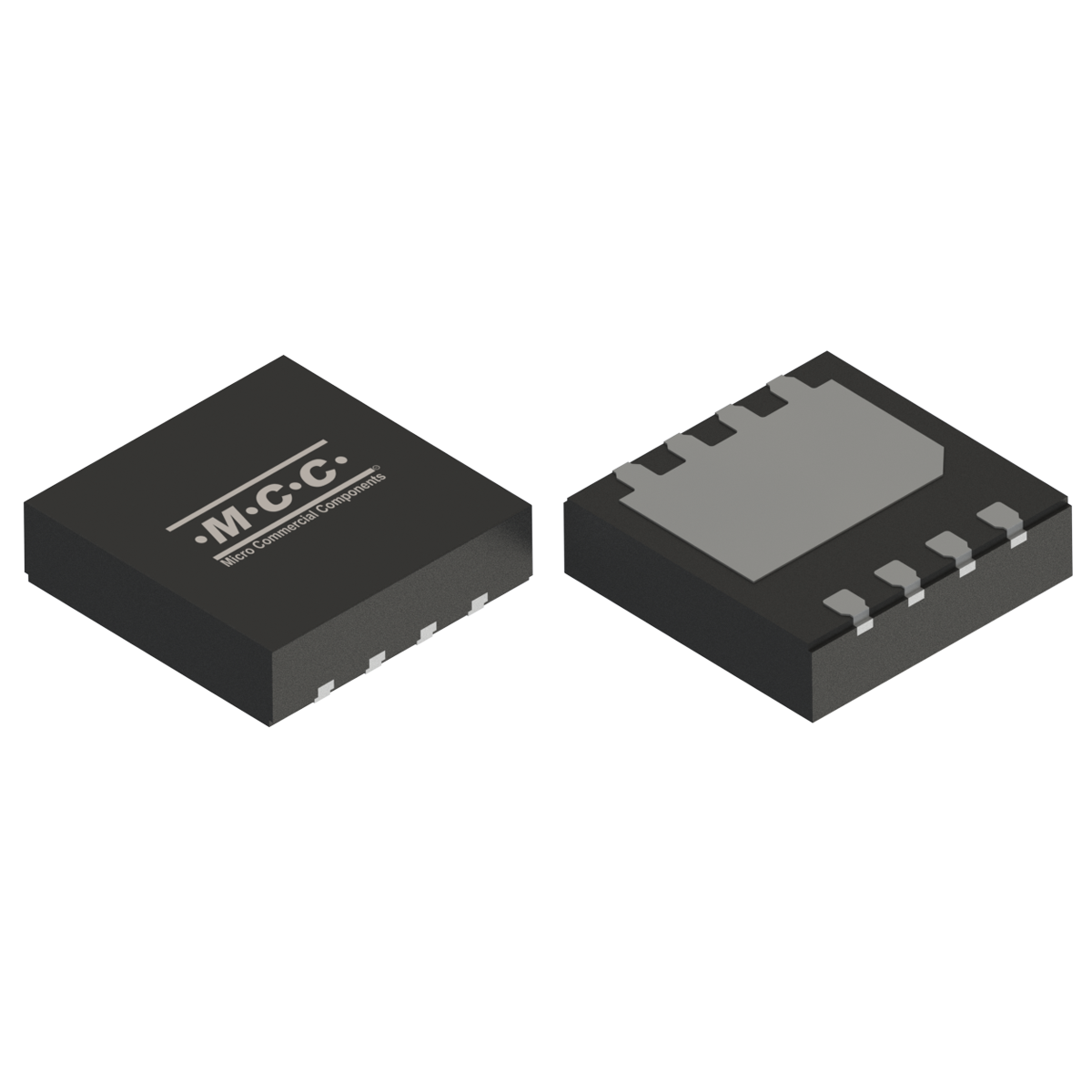

MCGWF20P06YHE3	DFN3333-8(SWF)	DFN3333-8(SWF)	0.0000	F20P06	Tape&Reel:5Kpcs/Reel;

Reliability Report	Soldering Profile	Environmental Compliance
Download	Download	Download

MSL
1
