Standard Recovery Power Modules | Status : Active

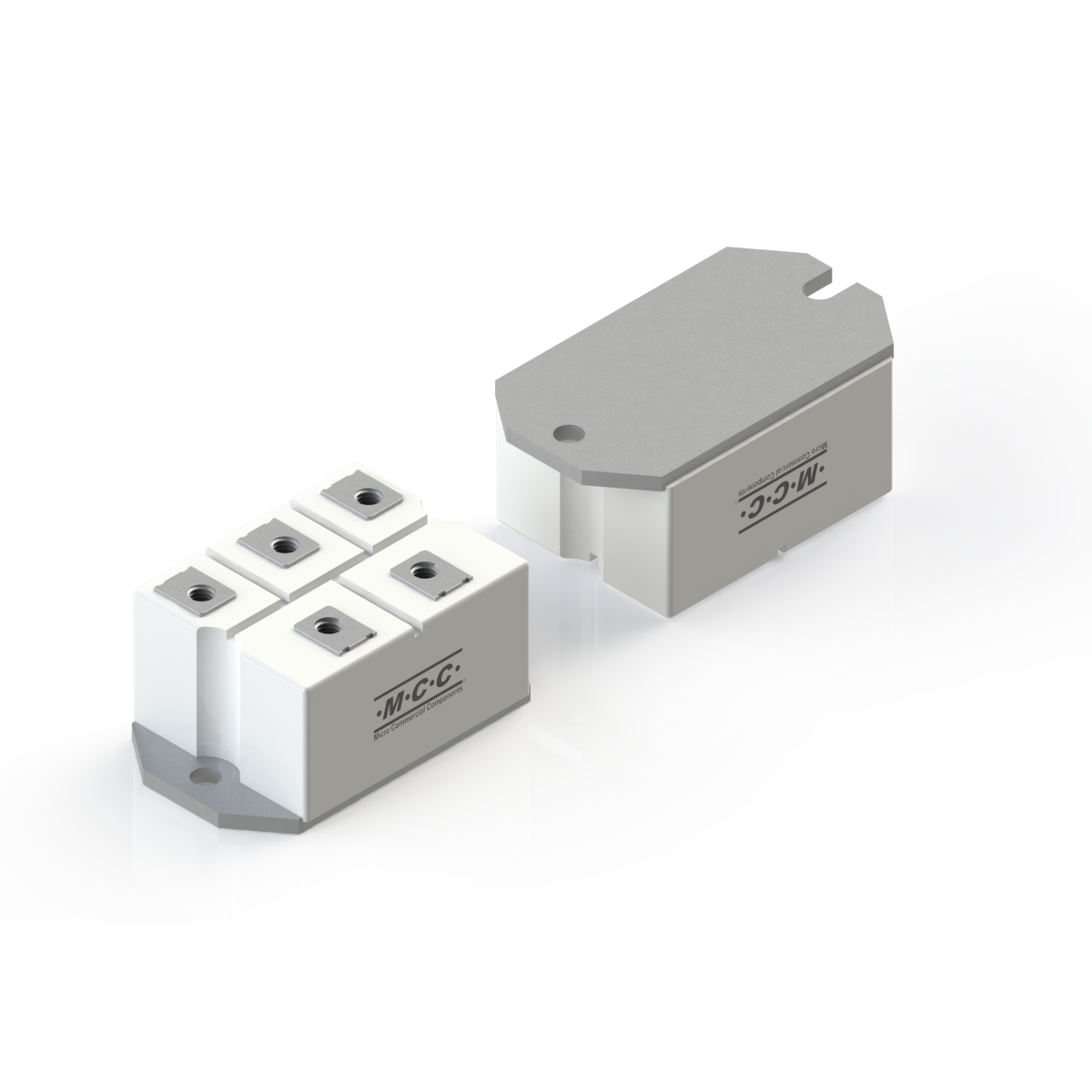

MD100S18M2

Check Stock Add To Cart
Datasheet ECAD Model

Product Detail

Part Number Number of Functions VRRM (V) IF(AV)(A)@Tc (°C) IFSM (A) VFM (V) IF(A) IRD (mA) VRD (V) Tc (°C) TVj [max] (°C)
MD100S18M2 3-Phase Bridge 1800 100 920 1.9 150 5 1800 100 150
Part Number MD100S18M2 Number of Functions 3-Phase Bridge VRRM (V)  1800 IF(AV)(A)@Tc (°C)  100 IFSM (A)  920 VFM (V)  1.9 IF(A)  150 IRD (mA)  5 VRD (V)  1800 Tc (°C)  100 TVj [max] (°C)  150

Packing Information

Part Number Package Type Packing Specification Component Weight (g) Marking Code
MD100S18M2 M2 M2 130.0000 MD100S18M2

Environmental Information link icon

Reliability Report Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Environmental Compliance Download
