Standard Recovery Power Modules | Status : Active

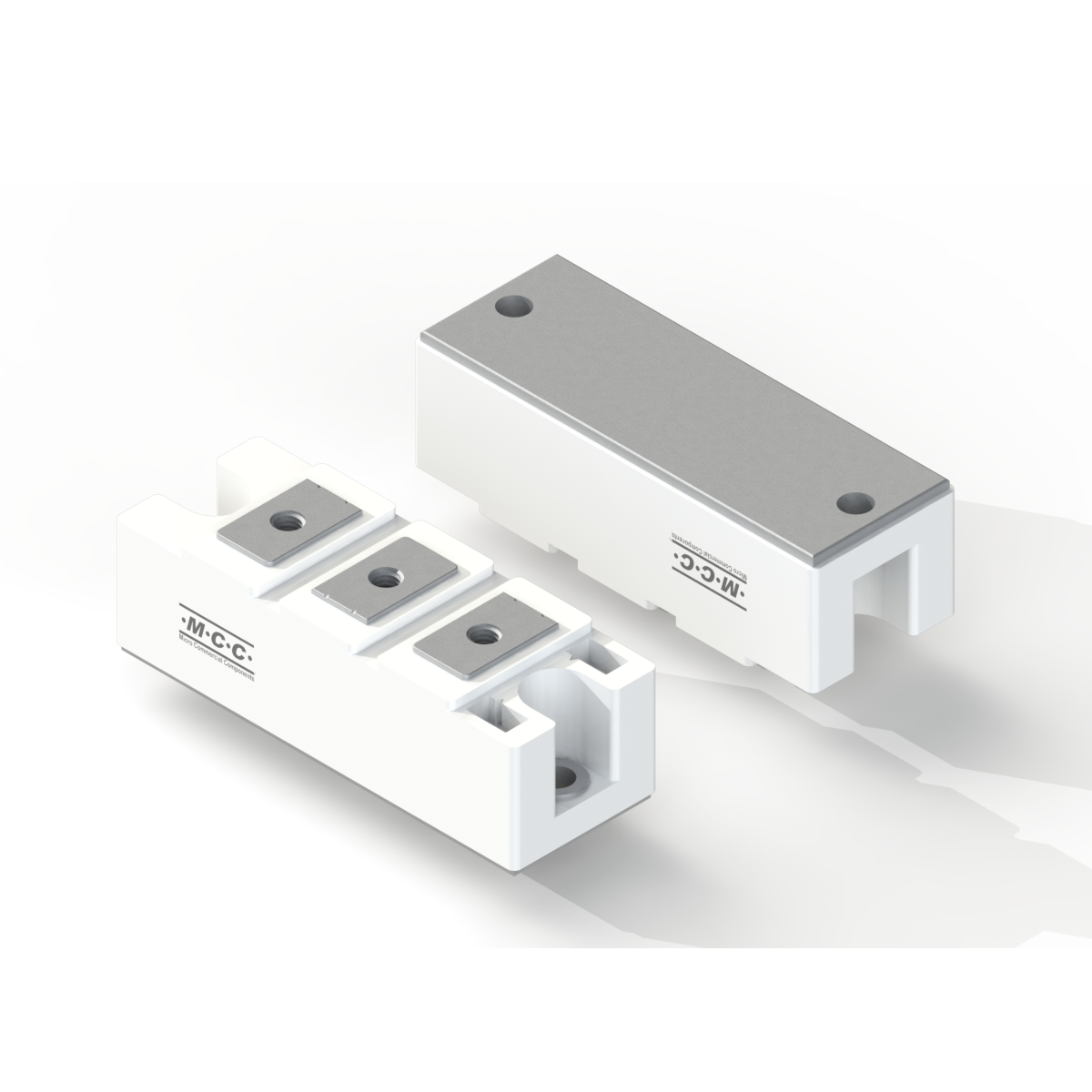

MD165A18D2

Check Stock Add To Cart
Datasheet ECAD Model

Product Detail

Part Number Number of Functions VRRM (V) IF(AV)(A)@Tc (°C) IFSM (A) VFM (V) IF(A) IRD (mA) VRD (V) Tc (°C) TVj [max] (°C)
MD165A18D2 Dual 1800 165 6000 1.4 300 6 1800 101 150
Part Number MD165A18D2 Number of Functions Dual VRRM (V)  1800 IF(AV)(A)@Tc (°C)  165 IFSM (A)  6000 VFM (V)  1.4 IF(A)  300 IRD (mA)  6 VRD (V)  1800 Tc (°C)  101 TVj [max] (°C)  150

Packing Information

Part Number Package Type Packing Specification Component Weight (g) Marking Code
MD165A18D2 D2 D2 160.0000 MD165A18D2

Environmental Information link icon

Reliability Report Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Environmental Compliance Download
