Standard Recovery Power Modules | Status : Active

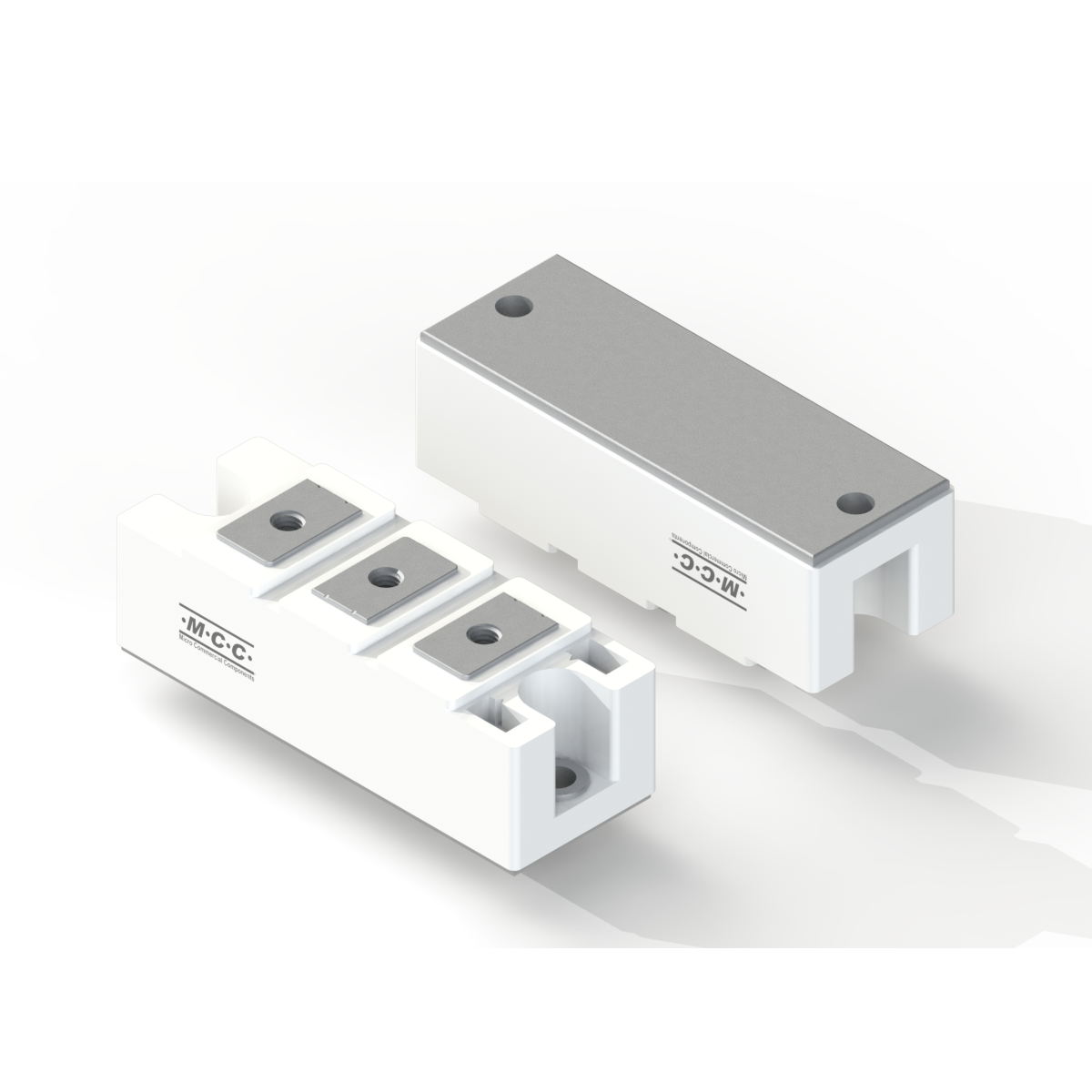

MD165A08D2

Check Stock Add To Cart
Datasheet ECAD Model

Product Detail

Part Number Number of Functions VRRM (V) IF(AV)(A)@Tc (°C) IFSM (A) VFM (V) IF(A) IRD (mA) VRD (V) Tc (°C) TVj [max] (°C)
MD165A08D2 Dual 800 165 6000 1.4 300 6 800 101 150
Part Number MD165A08D2 Number of Functions Dual VRRM (V)  800 IF(AV)(A)@Tc (°C)  165 IFSM (A)  6000 VFM (V)  1.4 IF(A)  300 IRD (mA)  6 VRD (V)  800 Tc (°C)  101 TVj [max] (°C)  150

Packing Information

Part Number Package Type Packing Specification Component Weight (g) Marking Code
MD165A08D2 D2 D2 160.0000 MD165A08D2

Environmental Information link icon

Reliability Report Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Environmental Compliance Download
