Standard Recovery Power Modules | Status :
Active

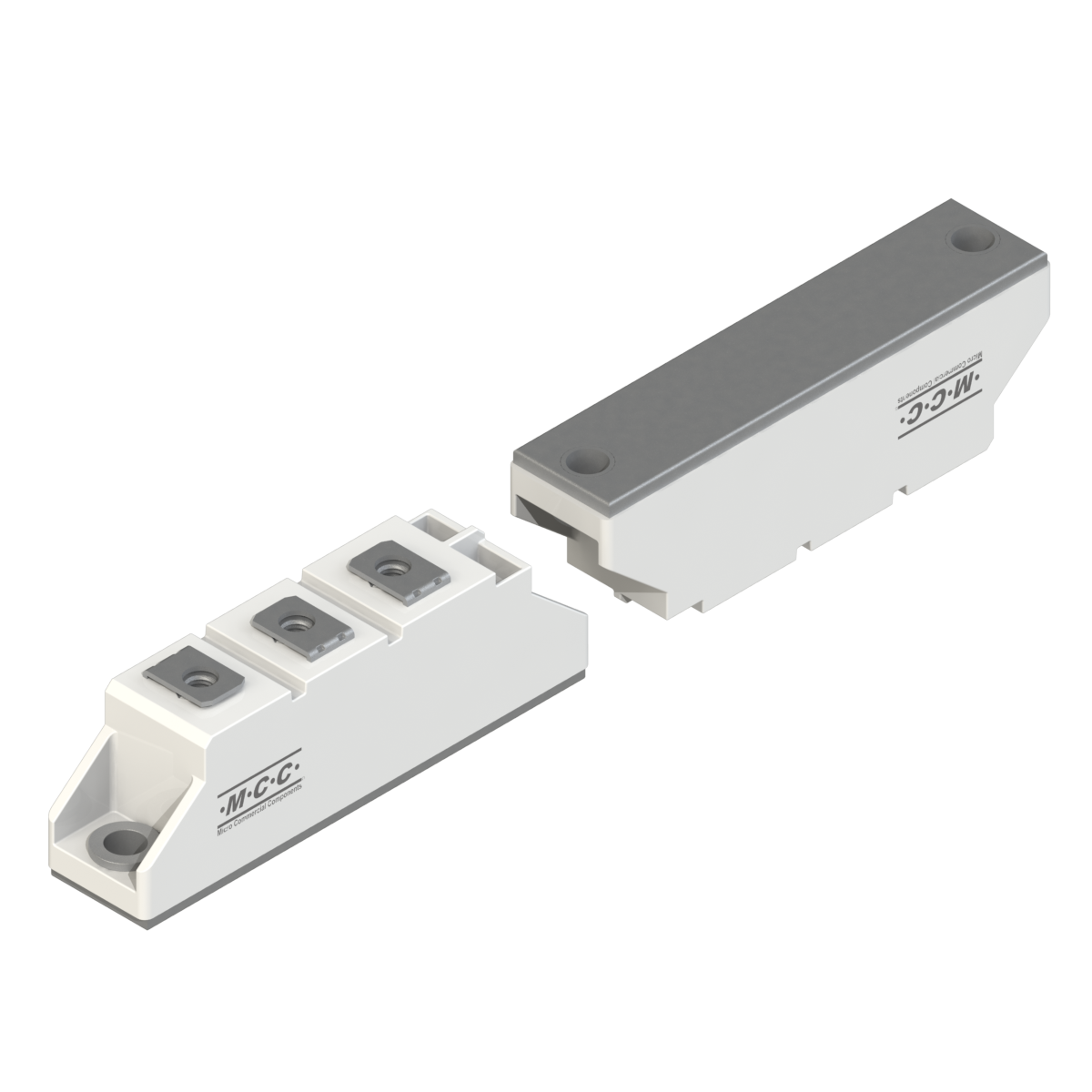

MD36C08D1
- Package Type:D1
- Packing Info:Bulk: 10PCS/BOX;
- Category:Standard Recovery Power Modules
- MPN:MD36C08D1-BP
Product Detail
| Part Number | Number of Functions | VRRM (V) | IF(AV)(A)@Tc (°C) | IFSM (A) | VFM (V) | IF(A) | IRD (mA) | VRD (V) | Tc (°C) | TVj [max] (°C) |
|---|---|---|---|---|---|---|---|---|---|---|
| MD36C08D1 | Dual | 800 | 36 | 650 | 1.4 | 100 | 5 | 800 | 104 | 150 |
| Part Number MD36C08D1 | Number of Functions Dual | VRRM (V) 800 | IF(AV)(A)@Tc (°C) 36 | IFSM (A) 650 | VFM (V) 1.4 | IF(A) 100 | IRD (mA) 5 | VRD (V) 800 | Tc (°C) 104 | TVj [max] (°C) 150 |
Packing Information
| Part Number | Package Type | Packing Specification | Component Weight (g) | Marking Code |
|---|---|---|---|---|
| MD36C08D1 | D1 | D1 | 97.0000 | MD36C08D1 |
