Standard Recovery Power Modules | Status :
Active

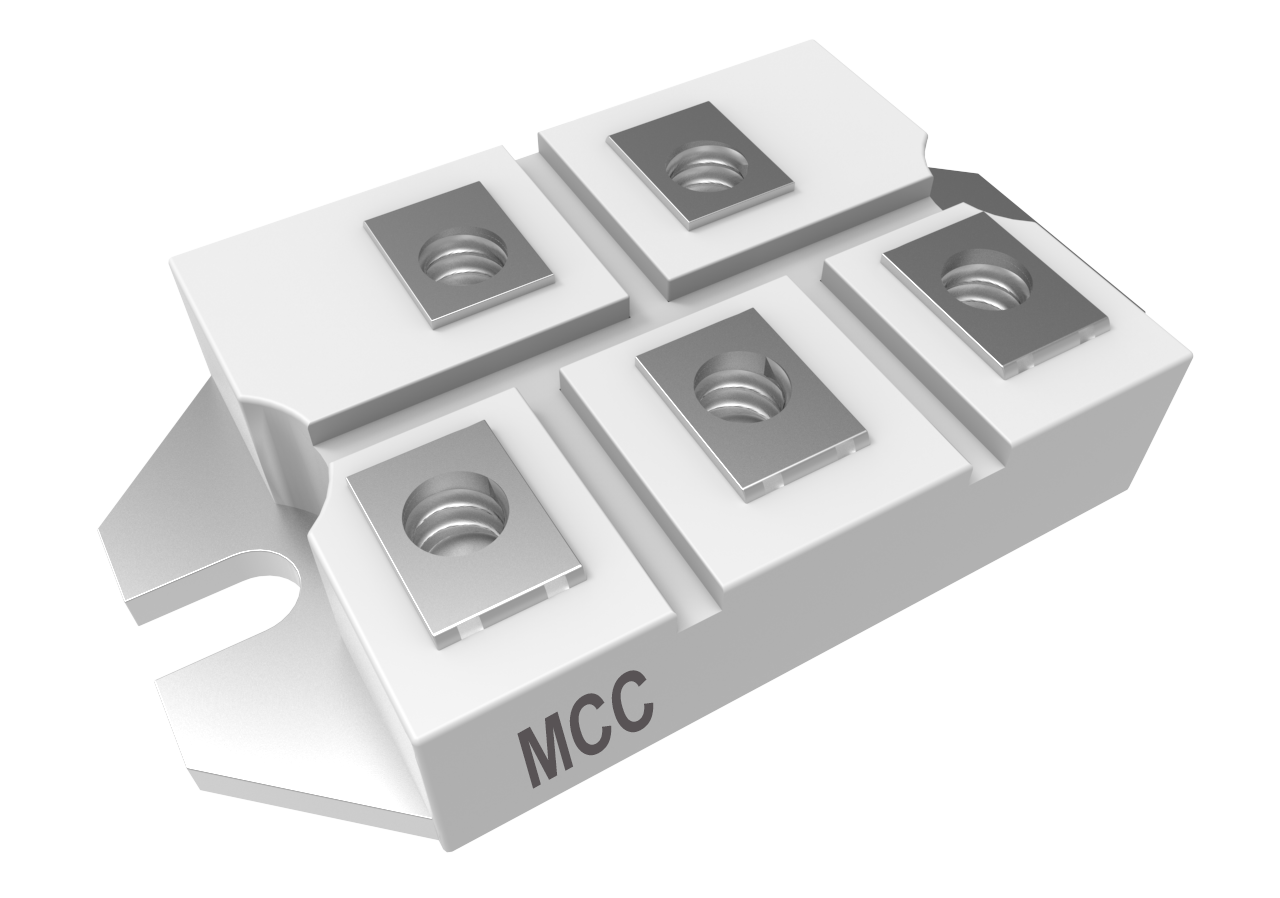

MD200S18M5
- Package Type:M5
- Packing Info:Bulk: 6PCS/BOX;
- Category:Standard Recovery Power Modules
- MPN:MD200S18M5-BP
Product Detail
| Part Number | Number of Functions | VRRM (V) | IF(AV)(A)@Tc (°C) | IFSM (A) | VFM (V) | IF(A) | IRD (mA) | VRD (V) | Tc (°C) | TVj [max] (°C) |
|---|---|---|---|---|---|---|---|---|---|---|
| MD200S18M5 | 3-Phase Bridge | 1800 | 200 | 2240 | 1.7 | 300 | 6 | 1800 | 100 | 150 |
| Part Number MD200S18M5 | Number of Functions 3-Phase Bridge | VRRM (V) 1800 | IF(AV)(A)@Tc (°C) 200 | IFSM (A) 2240 | VFM (V) 1.7 | IF(A) 300 | IRD (mA) 6 | VRD (V) 1800 | Tc (°C) 100 | TVj [max] (°C) 150 |
Packing Information
| Part Number | Package Type | Packing Specification | Component Weight (g) | Marking Code |
|---|---|---|---|---|
| MD200S18M5 | M5 | M5 | 194.0000 | MD200S18M5 |
