Standard Recovery Power Modules | Status : Active

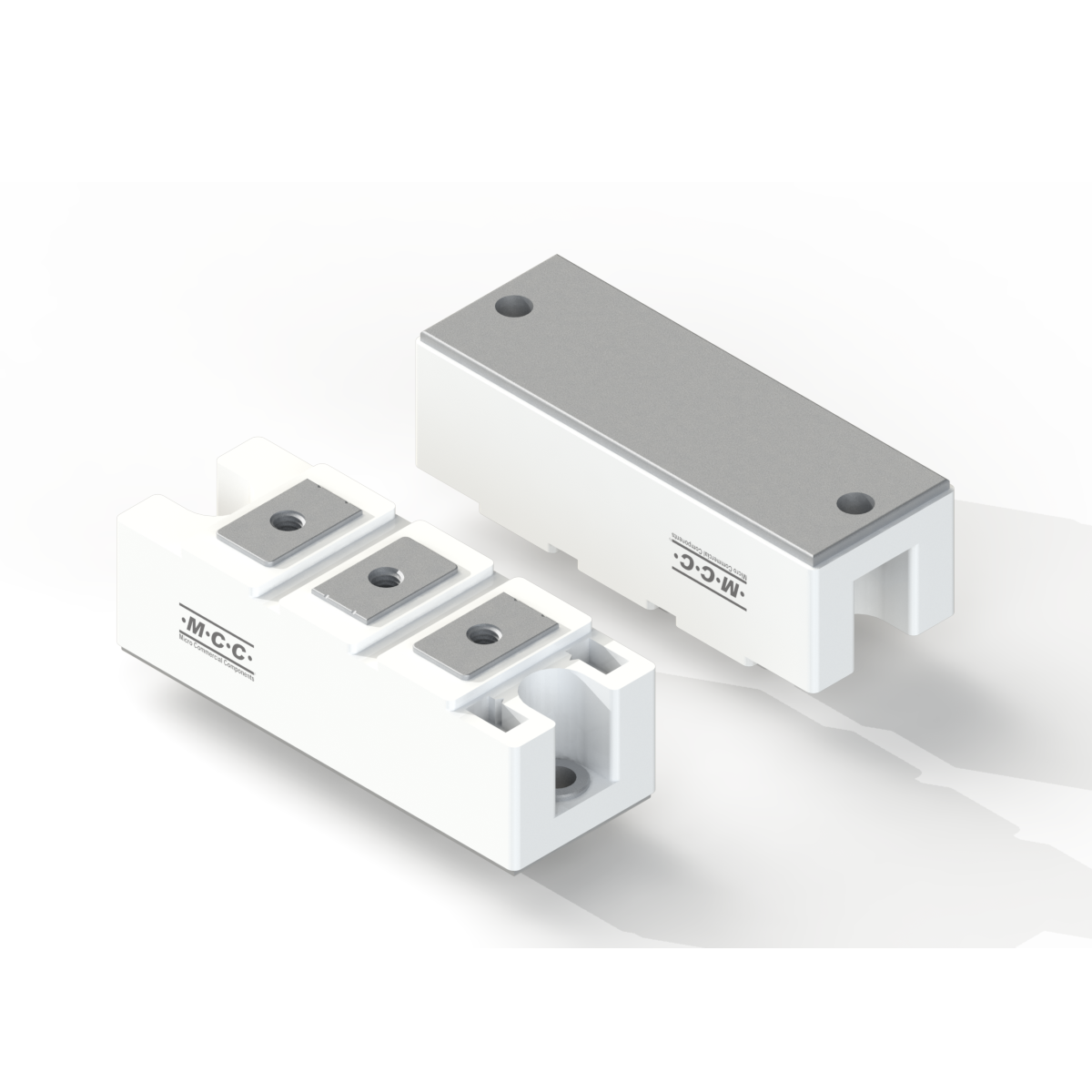

MD200U12D2

Check Stock Add To Cart
Datasheet ECAD Model

Product Detail

Part Number Number of Functions VRRM (V) IF(AV)(A)@Tc (°C) IFSM (A) VFM (V) IF(A) IRD (mA) VRD (V) Tc (°C) TVj [max] (°C)
MD200U12D2 Single 1200 200 6800 1.3 300 9 1200 101 150
Part Number MD200U12D2 Number of Functions Single VRRM (V)  1200 IF(AV)(A)@Tc (°C)  200 IFSM (A)  6800 VFM (V)  1.3 IF(A)  300 IRD (mA)  9 VRD (V)  1200 Tc (°C)  101 TVj [max] (°C)  150

Packing Information

Part Number Package Type Packing Specification Component Weight (g) Marking Code
MD200U12D2 D2 D2 160.0000 MD200U12D2

Environmental Information link icon

Reliability Report Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Environmental Compliance Download
