Standard Recovery Power Modules | Status : Active

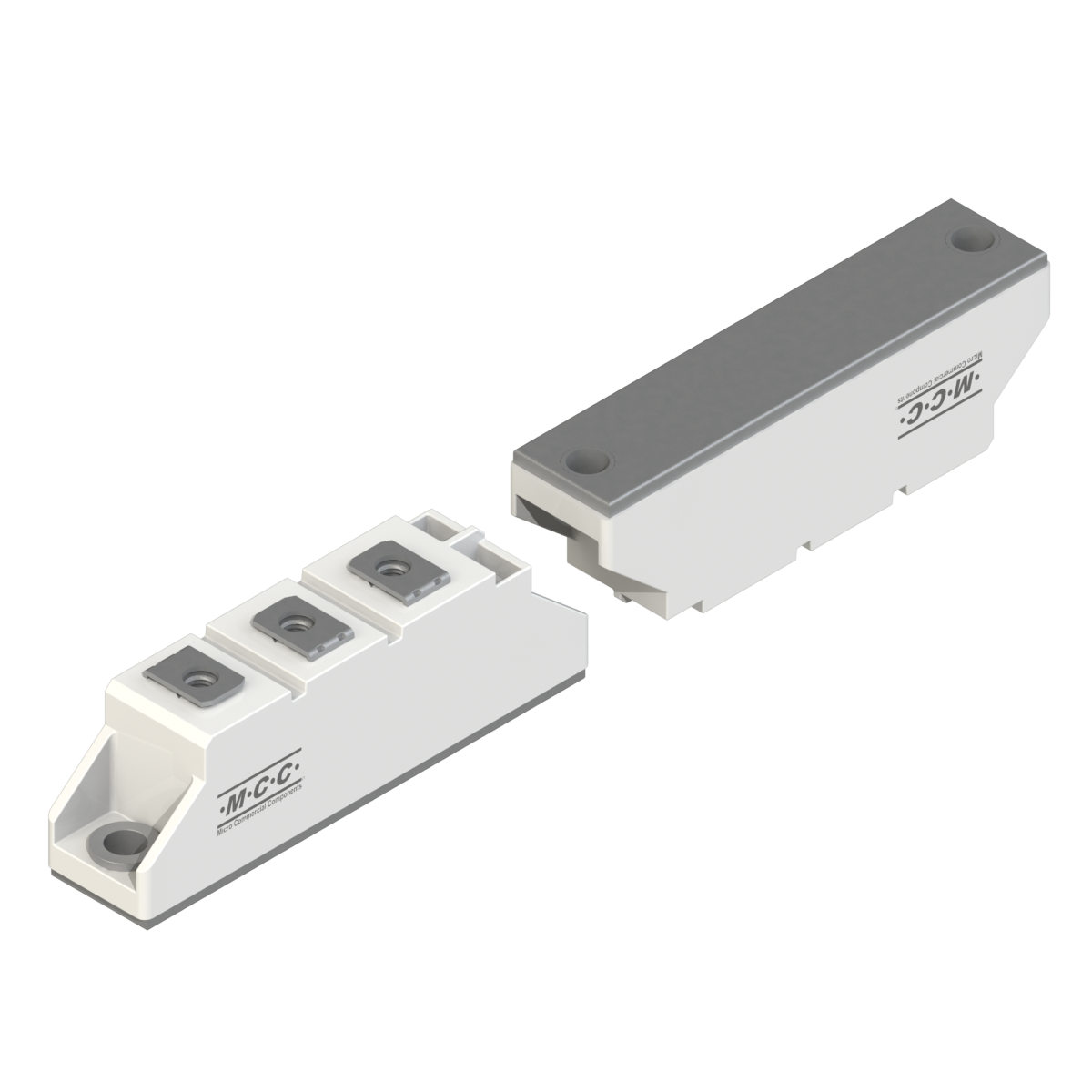

MD36C12D1

Check Stock Add To Cart
Datasheet ECAD Model

Product Detail

Part Number Number of Functions VRRM (V) IF(AV)(A)@Tc (°C) IFSM (A) VFM (V) IF(A) IRD (mA) VRD (V) Tc (°C) TVj [max] (°C)
MD36C12D1 Dual 1200 36 650 1.4 100 5 1200 104 150
Part Number MD36C12D1 Number of Functions Dual VRRM (V)  1200 IF(AV)(A)@Tc (°C)  36 IFSM (A)  650 VFM (V)  1.4 IF(A)  100 IRD (mA)  5 VRD (V)  1200 Tc (°C)  104 TVj [max] (°C)  150

Packing Information

Part Number Package Type Packing Specification Component Weight (g) Marking Code
MD36C12D1 D1 D1 97.0000 MD36C12D1

Environmental Information link icon

Reliability Report Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Environmental Compliance Download
