ESD Protection Devices | Status : Active

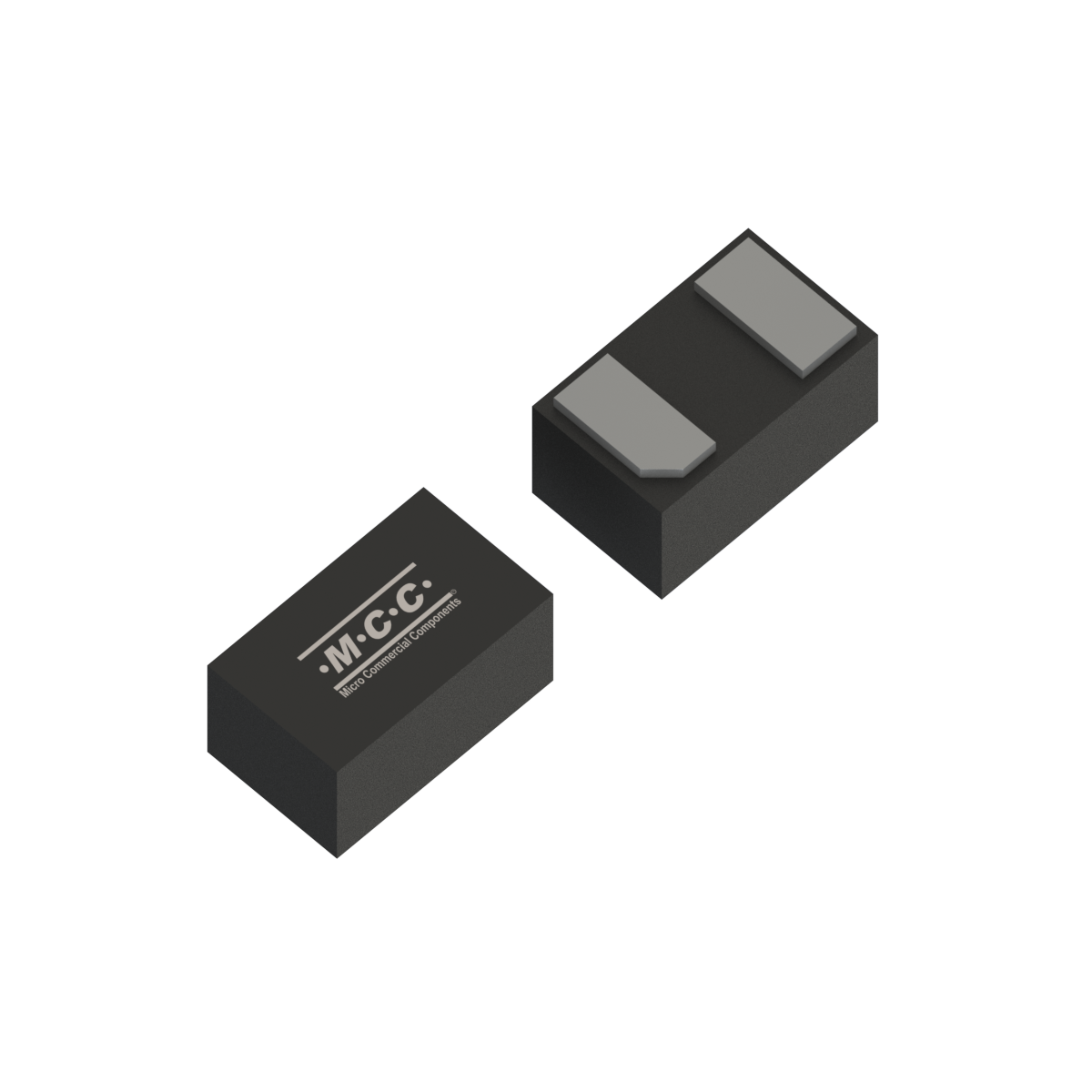

CSPSBHC6V3LB

Check Stock Add To Cart
Datasheet ECAD Model

Product Detail

Part Number Number of Functions Configuration Reverse
Standoff
Voltage
VRWM(V)		 Peak Pulse
Current
IPP(A)		 Max.
Clamping
Voltage
VC (V)		 Junction
Capacitance
CJ(pF)		 Peak Pluse
Power
Dissipation
PPPK (W)		 Maximum
Reverse
Leakage
IR (uA)		 Breakdown
Voltage
Min VBR(V)		 Breakdown
Voltage
Max VBR(V)		 Junction
Temperature
Tj [max] (°C)		 VESDIEC61000-4-2
Air/Contact
(kV)
CSPSBHC6V3LB 1 Bidirectional 6.3 90 16.5 200 1485 0.5 6.5 9.5 125 ±30
Part Number CSPSBHC6V3LB Number of Functions 1 Configuration Bidirectional Reverse
Standoff
Voltage
VRWM(V)  6.3 		Peak Pulse
Current
IPP(A)  90 		Max.
Clamping
Voltage
VC (V)  16.5 		Junction
Capacitance
CJ(pF)  200 		Peak Pluse
Power
Dissipation
PPPK (W)  1485 		Maximum
Reverse
Leakage
IR (uA)  0.5 		Breakdown
Voltage
Min VBR(V)  6.5 		Breakdown
Voltage
Max VBR(V)  9.5 		Junction
Temperature
Tj [max] (°C)  125 		VESDIEC61000-4-2
Air/Contact
(kV)  ±30

Packing Information

Part Number Package Type Packing Specification Component Weight (g) Marking Code Packing Info
CSPSBHC6V3LB CSP1006-2 CSP1006-2 0.0005 C8 Tape&Reel: 10Kpcs/Reel;

Environmental Information link icon

Reliability Report Material Composition Data Sheet Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Configuration image Download Environmental Compliance Download

Similar Recommendations

Part Number Category Package Type Status Datasheet
ESDSBHC5V0LB ESD Protection Devices DFN1006-2 Active Datasheet
ESD6V3L ESD Protection Devices DFN1006-2 Active Datasheet
ESDSBHC6V3P6B ESD Protection Devices DFN1610-2 Active Datasheet
