ESD Protection Devices | Status :
Active
ESDSBHC6V3P6B

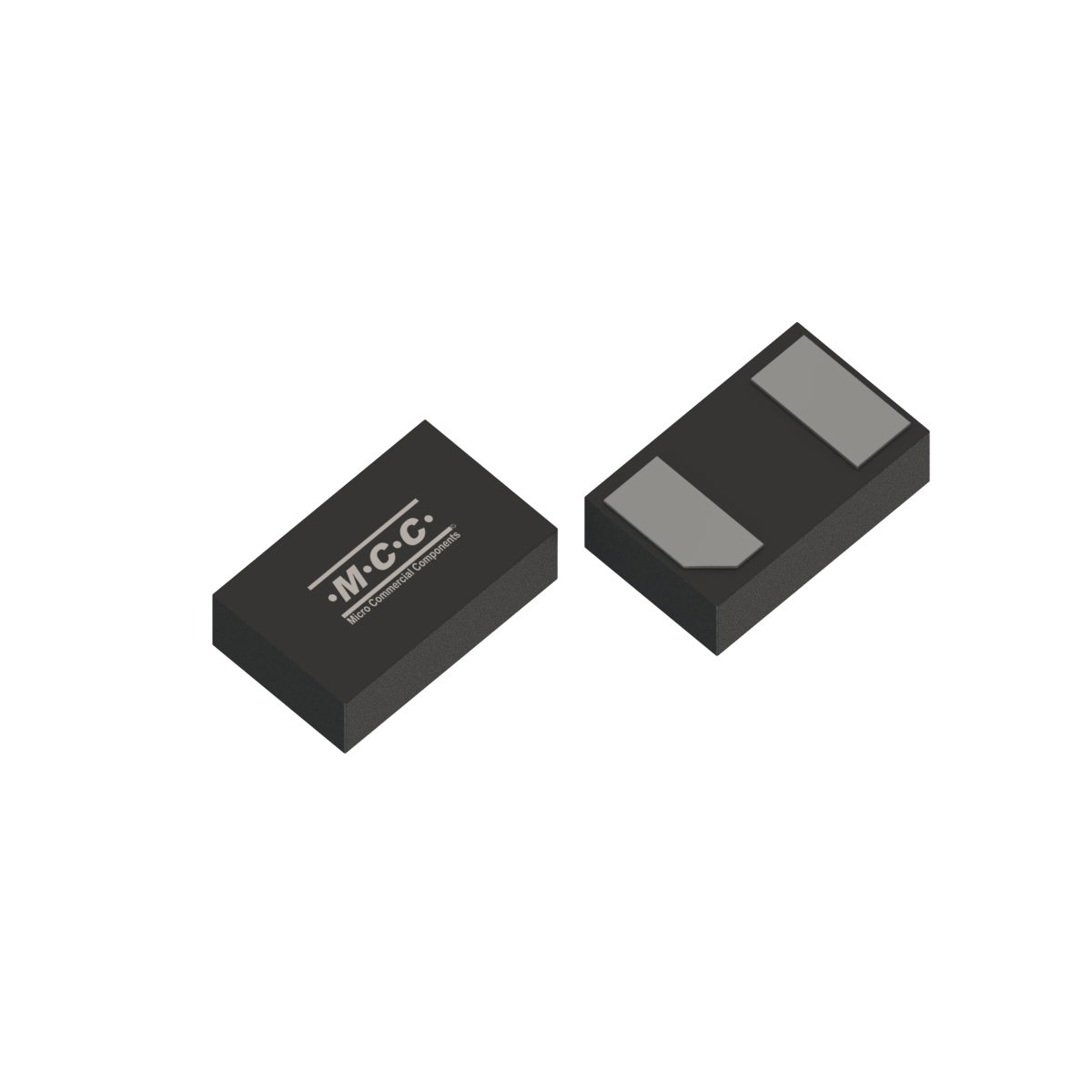

- Package Type:DFN1610-2
- Packing Info:Tape&Reel:3Kpcs/Reel;
- Category:ESD Protection Devices
Product Detail
| Part Number | Number of Functions | Configuration | Reverse Standoff Voltage VRWM(V) |
Peak Pulse Current IPP(A) |
Max. Clamping Voltage VC (V) |
Junction Capacitance CJ(pF) |
Peak Pluse Power Dissipation PPPK (W) |
Maximum Reverse Leakage IR (uA) |
Breakdown Voltage Min VBR(V) |
Breakdown Voltage Max VBR(V) |
Junction Temperature Tj [max] (°C) |
VESDIEC61000-4-2 Air/Contact (kV) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ESDSBHC6V3P6B | 1 | Bidirectional | 6.3 | 155 | 17 | 370 | 2635 | 0.5 | 6.5 | 125 | ±30 |
| Part Number ESDSBHC6V3P6B | Number of Functions 1 | Configuration Bidirectional |
Reverse Standoff Voltage VRWM(V) 6.3 |
Peak Pulse Current IPP(A) 155 |
Max. Clamping Voltage VC (V) 17 |
Junction Capacitance CJ(pF) 370 |
Peak Pluse Power Dissipation PPPK (W) 2635 |
Maximum Reverse Leakage IR (uA) 0.5 |
Breakdown Voltage Min VBR(V) 6.5 |
Breakdown Voltage Max VBR(V) |
Junction Temperature Tj [max] (°C) 125 |
VESDIEC61000-4-2 Air/Contact (kV) ±30 |
Packing Information
Environmental Information
Download
| MSL | Halogen Free |
|---|---|
| 1 |
|
