ESD Protection Devices | Status : Active

ESD0751P6

Check Stock Add To Cart
Datasheet ECAD Model

Product Detail

Part Number Number of Functions Configuration Reverse
Standoff
Voltage
VRWM(V)		 Peak Pulse
Current
IPP(A)		 Max.
Clamping
Voltage
VC (V)		 Junction
Capacitance
CJ(pF)		 Peak Pluse
Power
Dissipation
PPPK (W)		 Maximum
Reverse
Leakage
IR (uA)		 Breakdown
Voltage
Min VBR(V)		 Breakdown
Voltage
Max VBR(V)		 Junction
Temperature
Tj [max] (°C)		 VESDIEC61000-4-2
Air/Contact
(kV)
ESD0751P6 1 Unidirectional 7 100 17 900 1800 1 8 10 125 ±30
Part Number ESD0751P6 Number of Functions 1 Configuration Unidirectional Reverse
Standoff
Voltage
VRWM(V)  7 		Peak Pulse
Current
IPP(A)  100 		Max.
Clamping
Voltage
VC (V)  17 		Junction
Capacitance
CJ(pF)  900 		Peak Pluse
Power
Dissipation
PPPK (W)  1800 		Maximum
Reverse
Leakage
IR (uA)  1 		Breakdown
Voltage
Min VBR(V)  8 		Breakdown
Voltage
Max VBR(V)  10 		Junction
Temperature
Tj [max] (°C)  125 		VESDIEC61000-4-2
Air/Contact
(kV)  ±30

Packing Information

Part Number Package Type Packing Specification Component Weight (g) Marking Code Packing Info

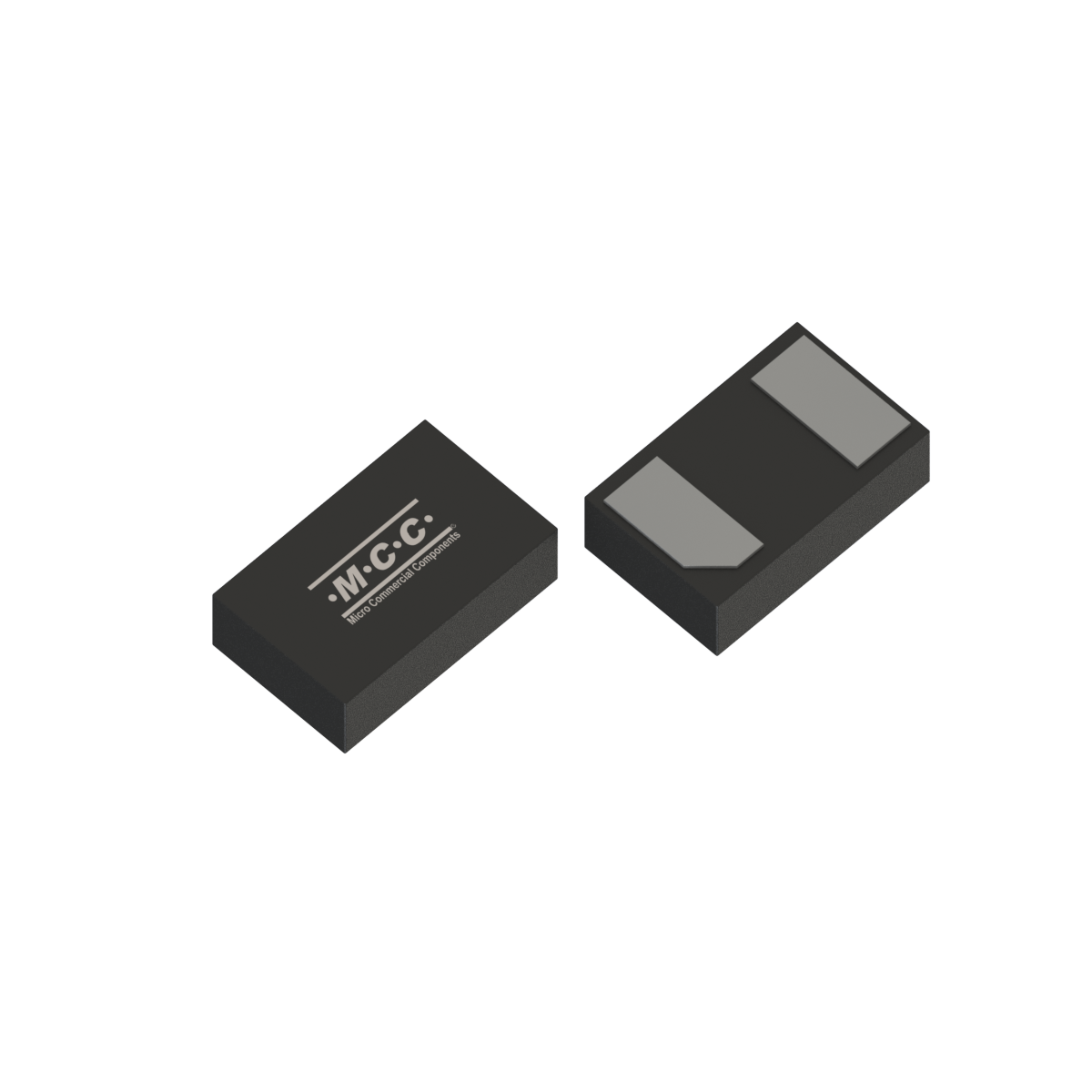

ESD0751P6 DFN1610-2 DFN1610-2 0.0029 7DA Tape&Reel: 3Kpcs/Reel;

Environmental Information link icon

Reliability Report Material Composition Data Sheet Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Configuration image Download Environmental Compliance Download
Halogen Free
Halogen Free

ECN/PCN

ECN/PCN No# Title PDF Issued Date
080824 Additional new 2nd source PDF 08/08/2024
