ESD Protection Devices | Status :
Active

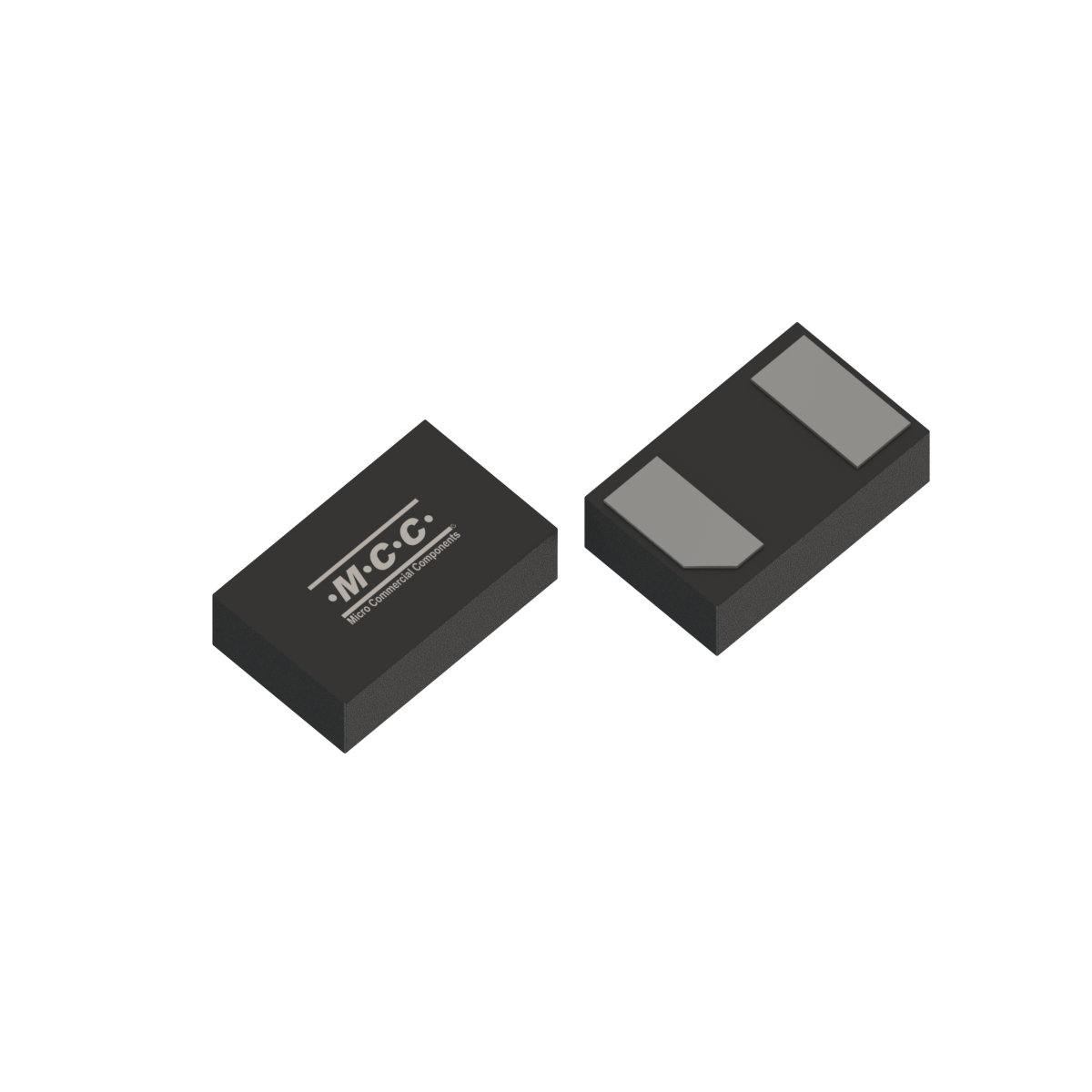

ESD0771P6
- Package Type:DFN1610-2
- Packing Info: Tape&Reel: 3Kpcs/Reel;
- Category:ESD Protection Devices
Product Detail
| Part Number | Number of Functions | Configuration | Reverse Standoff Voltage VRWM(V) |
Peak Pulse Current IPP(A) |
Max. Clamping Voltage VC (V) |
Junction Capacitance CJ(pF) |
Peak Pluse Power Dissipation PPPK (W) |
Maximum Reverse Leakage IR (uA) |
Breakdown Voltage Min VBR(V) |
Breakdown Voltage Max VBR(V) |
Junction Temperature Tj [max] (°C) |
VESDIEC61000-4-2 Air/Contact (kV) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ESD0771P6 | 1 | Unidirectional | 7 | 115 | 16.5 | 550 | 1875 | 0.5 | 7.5 | 125 | ±30 |
| Part Number ESD0771P6 | Number of Functions 1 | Configuration Unidirectional |
Reverse Standoff Voltage VRWM(V) 7 |
Peak Pulse Current IPP(A) 115 |
Max. Clamping Voltage VC (V) 16.5 |
Junction Capacitance CJ(pF) 550 |
Peak Pluse Power Dissipation PPPK (W) 1875 |
Maximum Reverse Leakage IR (uA) 0.5 |
Breakdown Voltage Min VBR(V) 7.5 |
Breakdown Voltage Max VBR(V) |
Junction Temperature Tj [max] (°C) 125 |
VESDIEC61000-4-2 Air/Contact (kV) ±30 |
Packing Information
Environmental Information
Download
| Halogen Free |
|---|
|
