ESD Protection Devices | Status :
Active
ESD4571P6

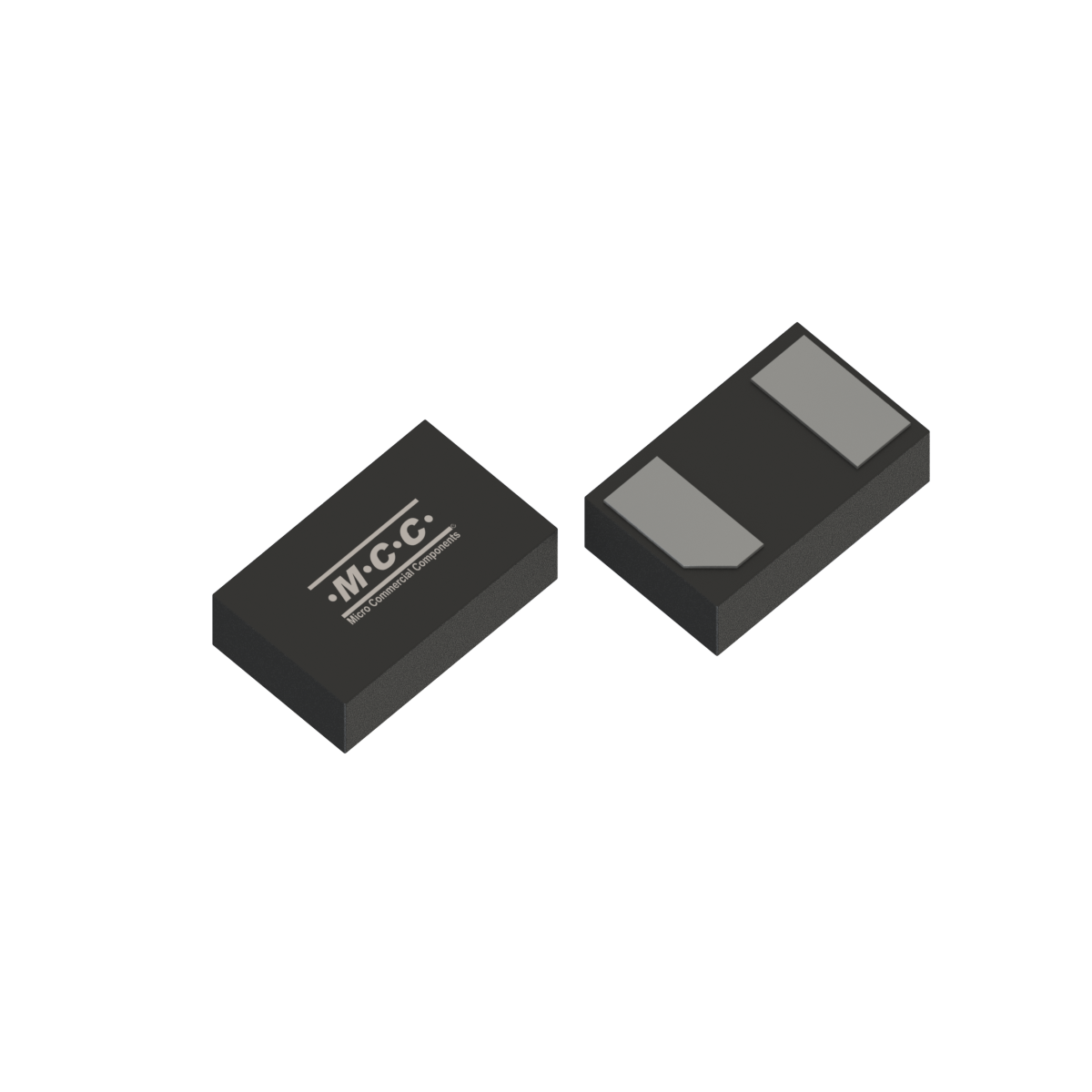

- Package Type:DFN1610-2
- Packing Info:Tape&Reel: 3Kpcs/Reel;
- Category:ESD Protection Devices
Product Detail
| Part Number | Number of Functions | Configuration | Reverse Standoff Voltage VRWM(V) |
Peak Pulse Current IPP(A) |
Max. Clamping Voltage VC (V) |
Junction Capacitance CJ(pF) |
Peak Pluse Power Dissipation PPPK (W) |
Maximum Reverse Leakage IR (uA) |
Breakdown Voltage Min VBR(V) |
Breakdown Voltage Max VBR(V) |
Junction Temperature Tj [max] (°C) |
VESDIEC61000-4-2 Air/Contact (kV) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ESD4571P6 | 1 | Unidirectional | 4.5 | 180 | 18 | 400 | 3200 | 0.2 | 4.8 | 125 | ±30 |
| Part Number ESD4571P6 | Number of Functions 1 | Configuration Unidirectional |
Reverse Standoff Voltage VRWM(V) 4.5 |
Peak Pulse Current IPP(A) 180 |
Max. Clamping Voltage VC (V) 18 |
Junction Capacitance CJ(pF) 400 |
Peak Pluse Power Dissipation PPPK (W) 3200 |
Maximum Reverse Leakage IR (uA) 0.2 |
Breakdown Voltage Min VBR(V) 4.8 |
Breakdown Voltage Max VBR(V) |
Junction Temperature Tj [max] (°C) 125 |
VESDIEC61000-4-2 Air/Contact (kV) ±30 |
Packing Information
| Part Number | Package Type | Packing Specification | Component Weight (g) | Marking Code | Packing Info |
|---|---|---|---|---|---|
| ESD4571P6 | DFN1610-2 | DFN1610-2 | 0.0029 | 47 | Tape&Reel: 3Kpcs/Reel; |
Environmental Information
Download
| Halogen Free |
|---|
|
