ESD Protection Devices | Status : Active

ESD4V5LB

Check Stock Add To Cart
Datasheet ECAD Model

Product Detail

Part Number Number of Functions Configuration Reverse
Standoff
Voltage
VRWM(V)		 Peak Pulse
Current
IPP(A)		 Max.
Clamping
Voltage
VC (V)		 Junction
Capacitance
CJ(pF)		 Peak Pluse
Power
Dissipation
PPPK (W)		 Maximum
Reverse
Leakage
IR (uA)		 Breakdown
Voltage
Min VBR(V)		 Breakdown
Voltage
Max VBR(V)		 Junction
Temperature
Tj [max] (°C)		 VESDIEC61000-4-2
Air/Contact
(kV)
ESD4V5LB 1 Bidirectional 4.5 45 12 100 540 0.5 4.8 6 125 ±30
Part Number ESD4V5LB Number of Functions 1 Configuration Bidirectional Reverse
Standoff
Voltage
VRWM(V)  4.5 		Peak Pulse
Current
IPP(A)  45 		Max.
Clamping
Voltage
VC (V)  12 		Junction
Capacitance
CJ(pF)  100 		Peak Pluse
Power
Dissipation
PPPK (W)  540 		Maximum
Reverse
Leakage
IR (uA)  0.5 		Breakdown
Voltage
Min VBR(V)  4.8 		Breakdown
Voltage
Max VBR(V)  6 		Junction
Temperature
Tj [max] (°C)  125 		VESDIEC61000-4-2
Air/Contact
(kV)  ±30

Packing Information

Part Number Package Type Packing Specification Component Weight (g) Marking Code Packing Info

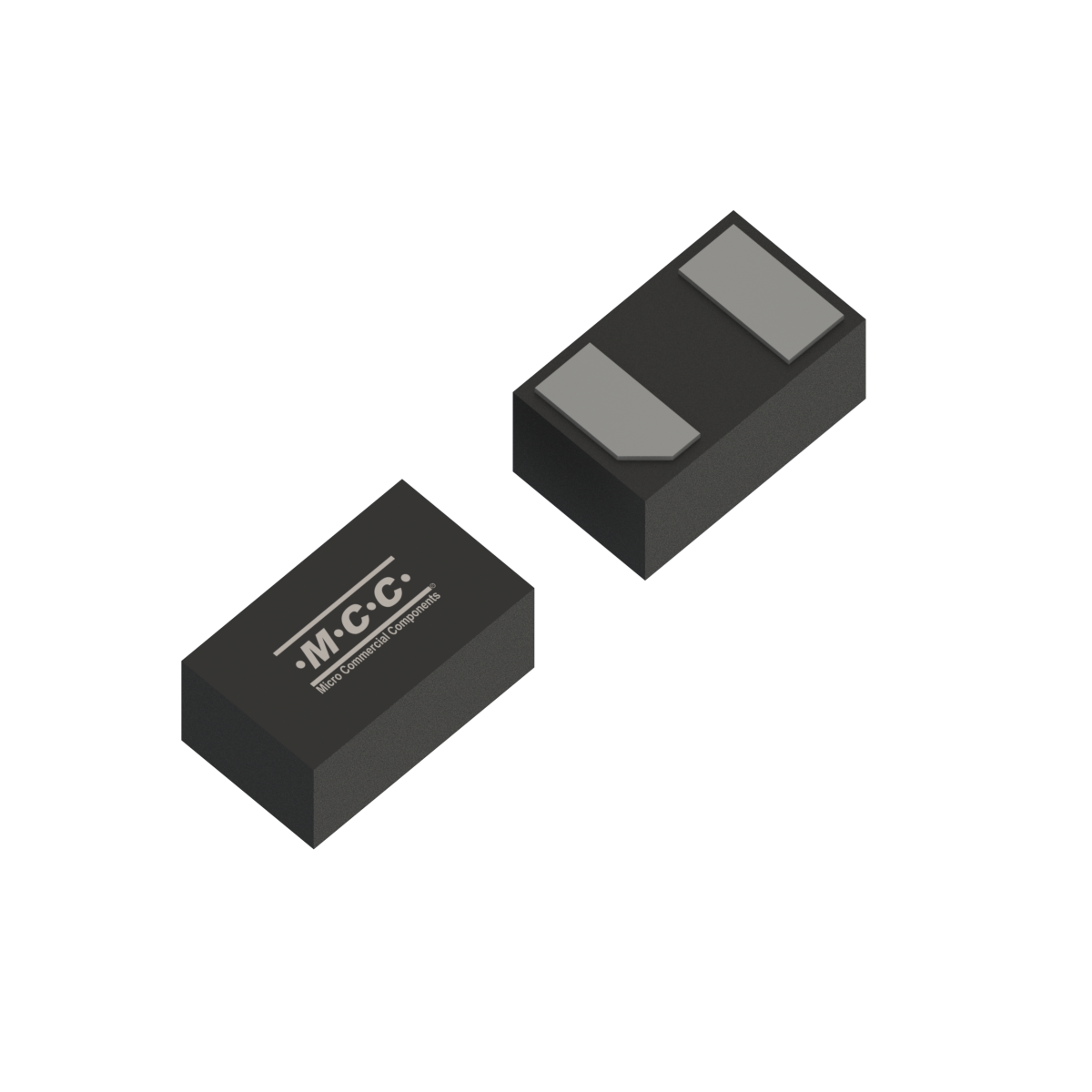

ESD4V5LB DFN1006-2 DFN1006-2 0.0011 45 Tape&Reel: 10Kpcs/Reel;

Environmental Information link icon

Reliability Report Material Composition Data Sheet Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Configuration image Download Environmental Compliance Download
Halogen Free
Halogen Free
