ESD Protection Devices | Status :
Active
ESDHC22VP4S

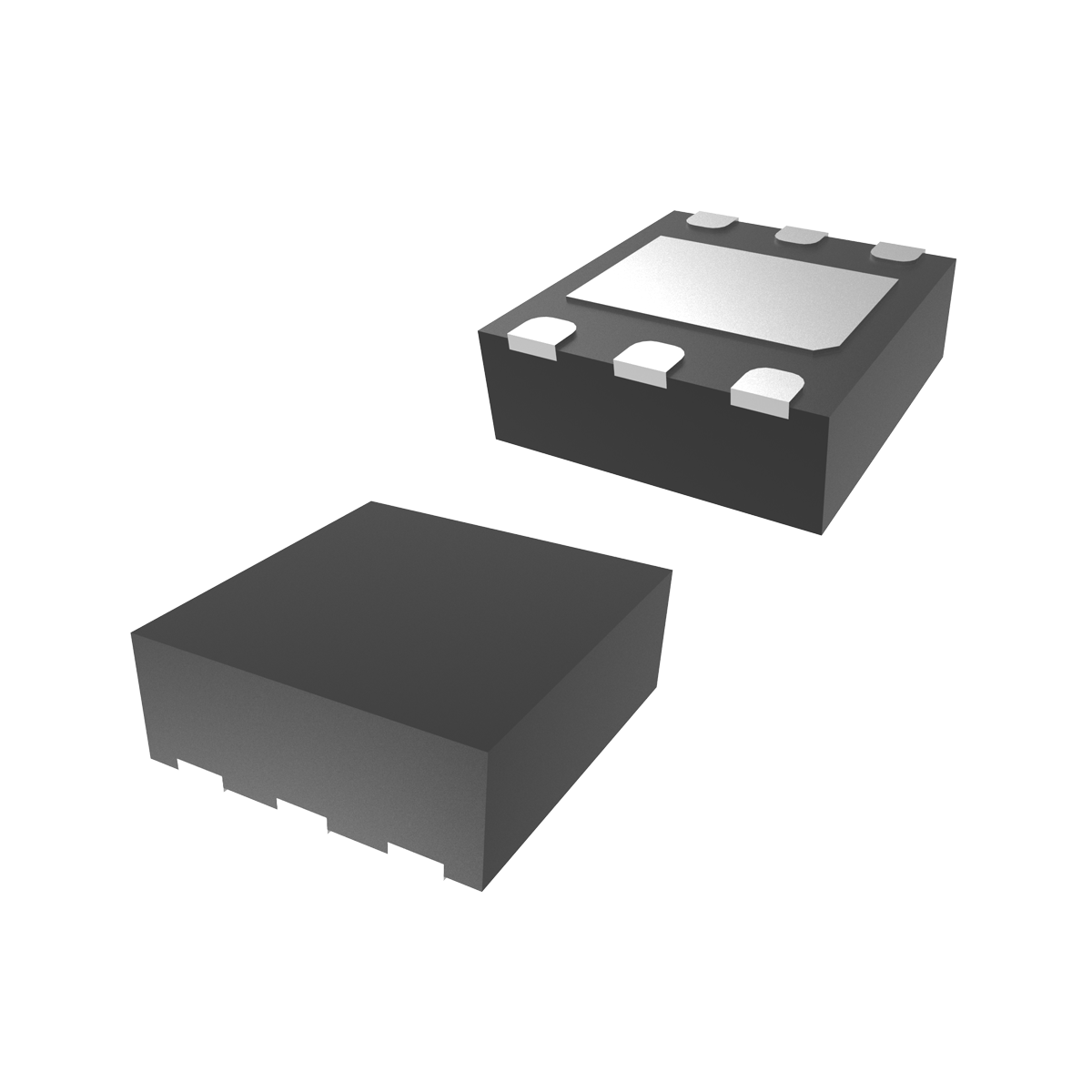

- Package Type:DFN2020-6S
- Packing Info:Tape&Reel: 3Kpcs/Reel;
- Category:ESD Protection Devices
Product Detail
| Part Number | Number of Functions | Configuration | Reverse Standoff Voltage VRWM(V) |
Peak Pulse Current IPP(A) |
Max. Clamping Voltage VC (V) |
Junction Capacitance CJ(pF) |
Peak Pluse Power Dissipation PPPK (W) |
Maximum Reverse Leakage IR (uA) |
Breakdown Voltage Min VBR(V) |
Breakdown Voltage Max VBR(V) |
Junction Temperature Tj [max] (°C) |
VESDIEC61000-4-2 Air/Contact (kV) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ESDHC22VP4S | 3 | Unidirectional | 22 | 100 | 52 | 280 | 5200 | 0.5 | 23 | 125 | ±30 |
| Part Number ESDHC22VP4S | Number of Functions 3 | Configuration Unidirectional |
Reverse Standoff Voltage VRWM(V) 22 |
Peak Pulse Current IPP(A) 100 |
Max. Clamping Voltage VC (V) 52 |
Junction Capacitance CJ(pF) 280 |
Peak Pluse Power Dissipation PPPK (W) 5200 |
Maximum Reverse Leakage IR (uA) 0.5 |
Breakdown Voltage Min VBR(V) 23 |
Breakdown Voltage Max VBR(V) |
Junction Temperature Tj [max] (°C) 125 |
VESDIEC61000-4-2 Air/Contact (kV) ±30 |
Packing Information
| Part Number | Package Type | Packing Specification | Component Weight (g) | Marking Code | Packing Info |
|---|---|---|---|---|---|
| ESDHC22VP4S | DFN2020-6S | DFN2020-6S | 0.0102 | C2P | Tape&Reel: 3Kpcs/Reel; |
