ESD Protection Devices | Status :
Active
ESDSBSLC3V3LT

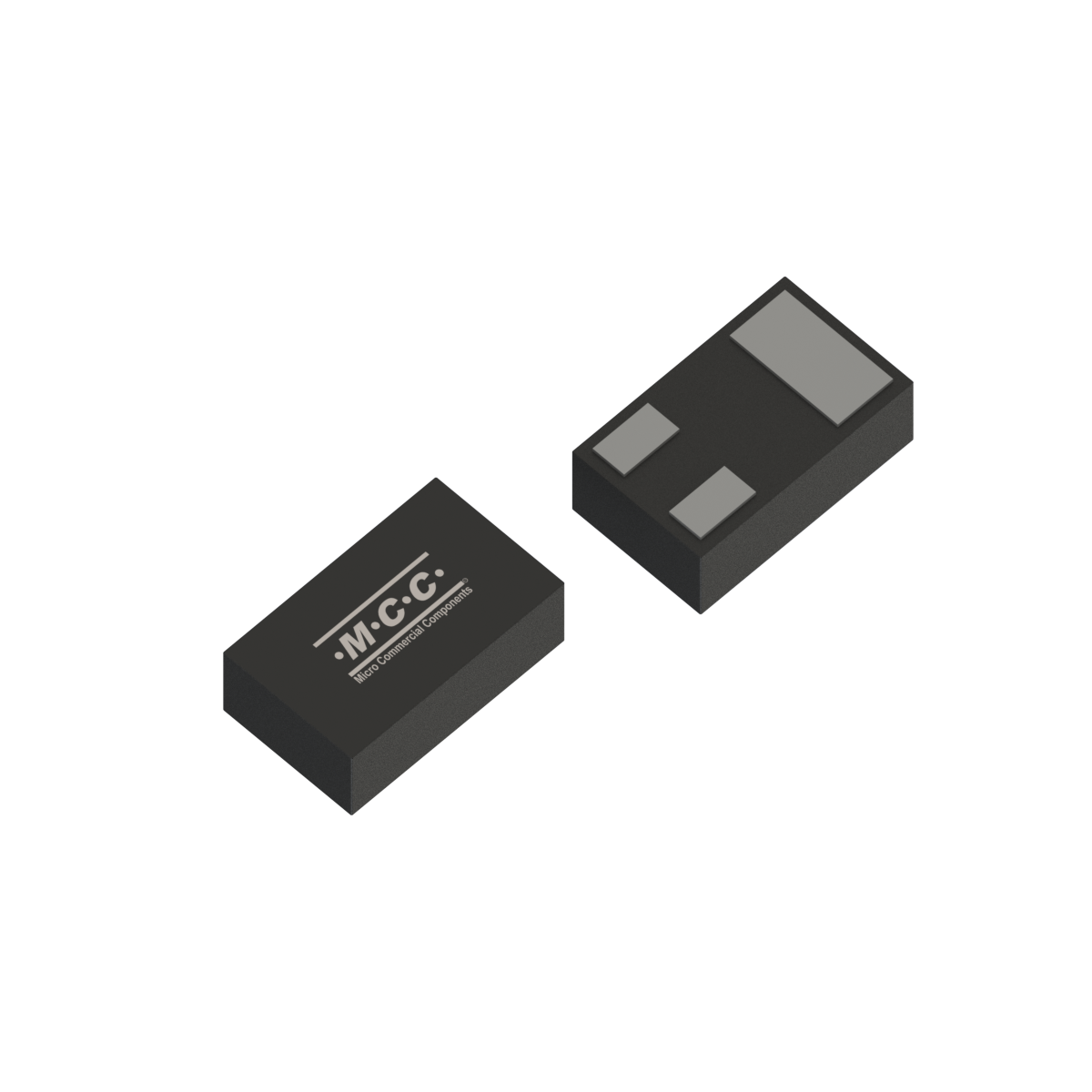

- Package Type:DFN1006-3B
- Packing Info:Tape&Reel:10Kpcs/Reel;
- Category:ESD Protection Devices
Product Detail
| Part Number | Number of Functions | Configuration | Reverse Standoff Voltage VRWM(V) |
Peak Pulse Current IPP(A) |
Max. Clamping Voltage VC (V) |
Junction Capacitance CJ(pF) |
Peak Pluse Power Dissipation PPPK (W) |
Maximum Reverse Leakage IR (uA) |
Breakdown Voltage Min VBR(V) |
Breakdown Voltage Max VBR(V) |
Junction Temperature Tj [max] (°C) |
VESDIEC61000-4-2 Air/Contact (kV) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ESDSBSLC3V3LT | 2 | Unidirectional | 3.3 | 13 | 5 | 1 | 65 | 0.2 | 3.5 | 125 | ±30 |
| Part Number ESDSBSLC3V3LT | Number of Functions 2 | Configuration Unidirectional |
Reverse Standoff Voltage VRWM(V) 3.3 |
Peak Pulse Current IPP(A) 13 |
Max. Clamping Voltage VC (V) 5 |
Junction Capacitance CJ(pF) 1 |
Peak Pluse Power Dissipation PPPK (W) 65 |
Maximum Reverse Leakage IR (uA) 0.2 |
Breakdown Voltage Min VBR(V) 3.5 |
Breakdown Voltage Max VBR(V) |
Junction Temperature Tj [max] (°C) 125 |
VESDIEC61000-4-2 Air/Contact (kV) ±30 |
Packing Information
| Part Number | Package Type | Packing Specification | Component Weight (g) | Marking Code | Packing Info |
|---|---|---|---|---|---|
| ESDSBSLC3V3LT | DFN1006-3B | DFN1006-3B | 0.0008 | A5 | Tape&Reel:10Kpcs/Reel; |
Environmental Information
Download
| MSL |
|---|
| 1 |
