SiC Schottky Barrier Diodes (SBDs) | Status : Active

SICU0260B

Check Stock Add To Cart
Datasheet ECAD Model

Product Detail

Part Number Number of Functions Average
Forward
Current
IF(AV)(A)		 Peak Repetitive
Reverse
Voltage
VRRM (V)		 Forward
Voltage
VF
(V) [max]@IF(A)		 Junction
Temperature
Tj [max] (°C)		 At Rated Forward
Current
IF (A)		 Reverse Voltage
Leakage
Current
IR (uA)  [max] @ VR		 Maximum DC
Blocking
Voltage
VR (V)		 Peak Forward
Surge
Current
IFSM (A)
SICU0260B Single 2 650 1.6 175 2 10 650 22
Part Number SICU0260B Number of Functions Single Average
Forward
Current
IF(AV)(A)  2 		Peak Repetitive
Reverse
Voltage
VRRM (V)  650 		Forward
Voltage
VF
(V) [max]@IF(A)  1.6 		Junction
Temperature
Tj [max] (°C)  175 		At Rated Forward
Current
IF (A)  2 		Reverse Voltage
Leakage
Current
IR (uA)  [max] @ VR  10 		Maximum DC
Blocking
Voltage
VR (V)  650 		Peak Forward
Surge
Current
IFSM (A)  22

Packing Information

Part Number Package Type Packing Specification Component Weight (g) Marking Code Packing Info

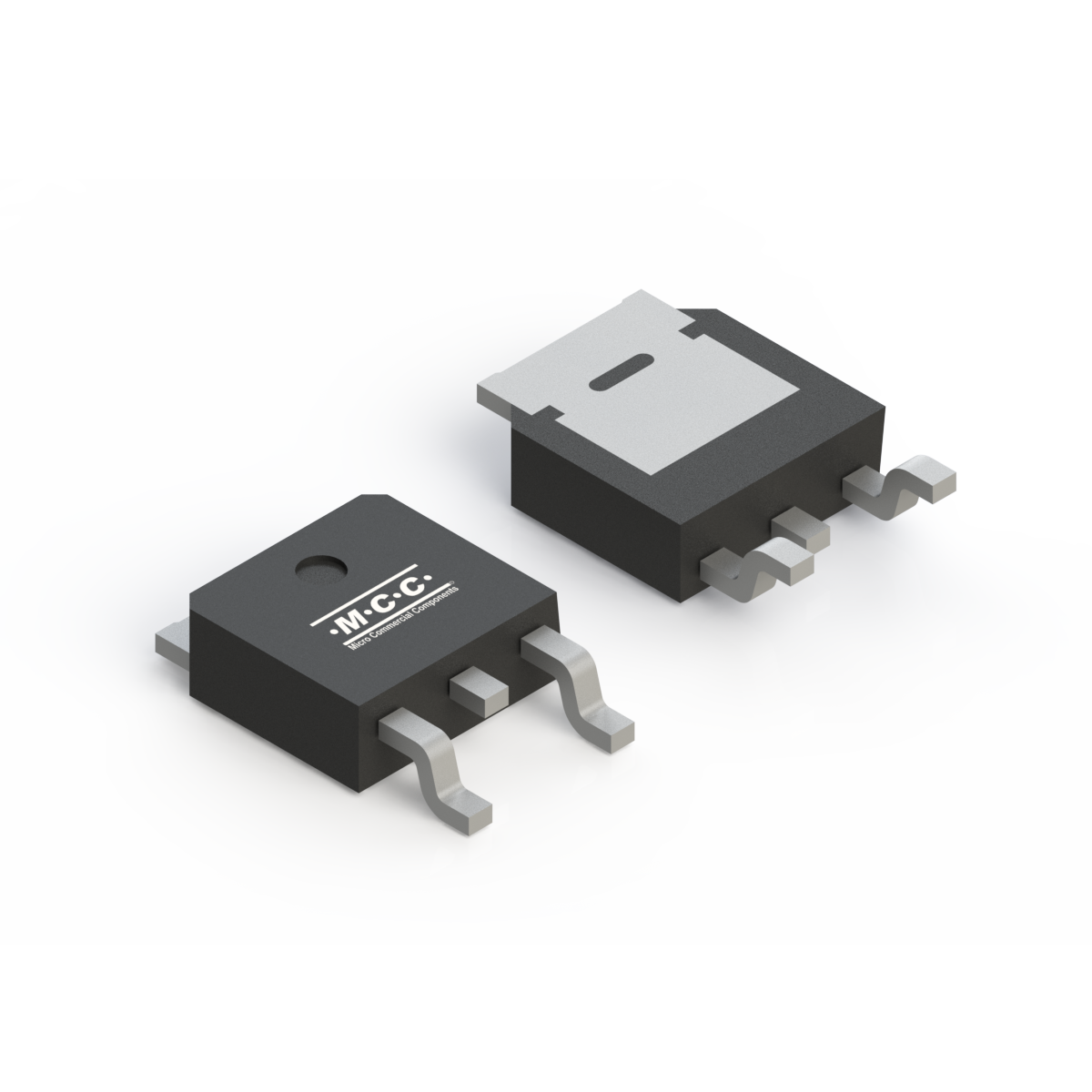

SICU0260B DPAK DPAK 0.3252 SICU0260B Tape&Reel: 2.5Kpcs/Reel;

Environmental Information link icon

Reliability Report Material Composition Data Sheet Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Configuration image Download Environmental Compliance Download
Halogen Free
Halogen Free

ECN/PCN

ECN/PCN No# Title PDF Issued Date
111522-1 Transfer wafer size from 4" to 6" for SICU0260B-TP & SICU02120B-TP PDF 11/15/2022
