SiC Schottky Barrier Diodes (SBDs) | Status :
Active

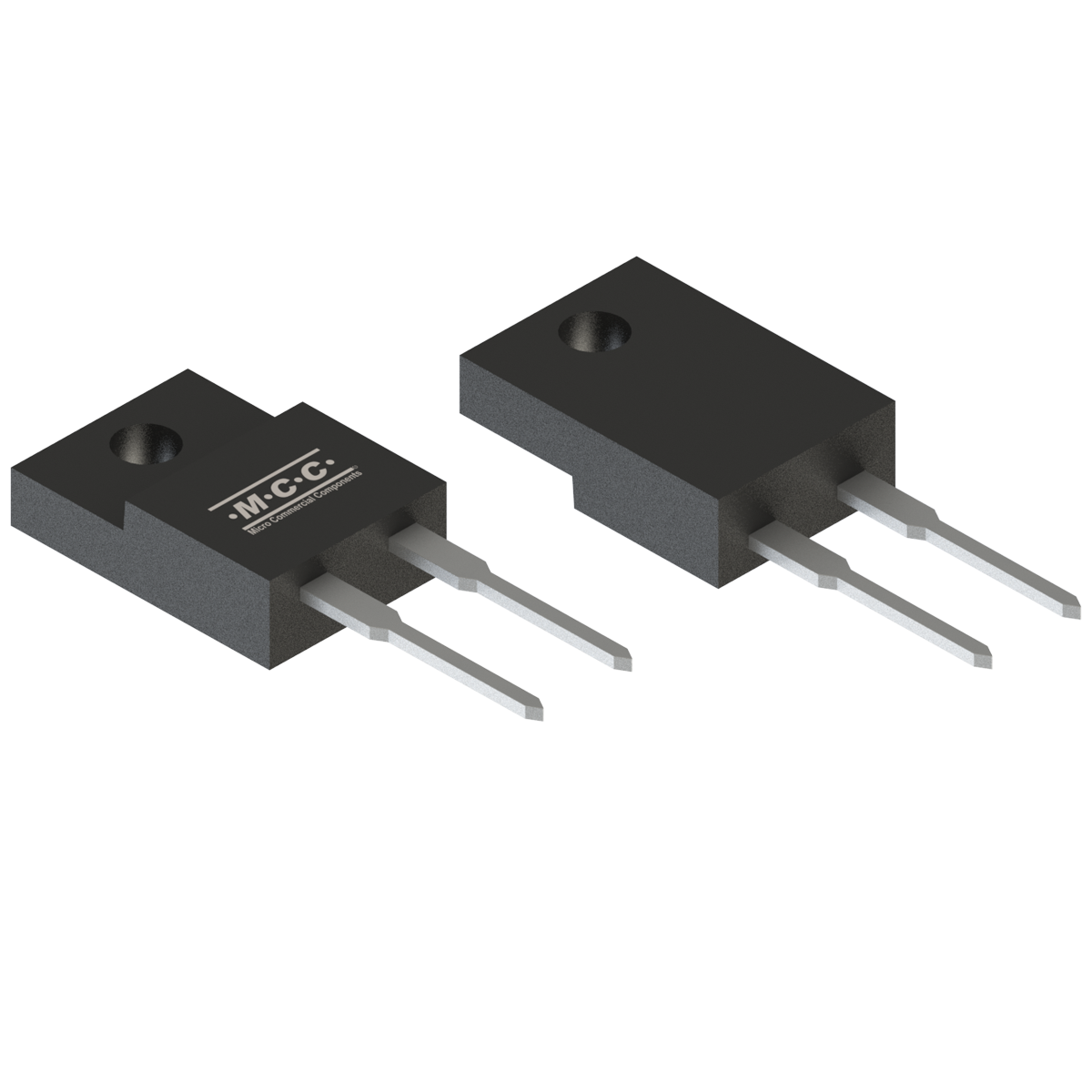

SICF1060P
- Package Type:ITO-220AC
- Packing Info:Bulk:1Kpcs/Box;
- Category:SiC Schottky Barrier Diodes (SBDs)
- MPN:SICF1060P-BP
Product Detail
| Part Number | Number of Functions | Average Forward Current IF(AV)(A) |
Peak Repetitive Reverse Voltage VRRM (V) |
Forward Voltage VF (V) [max]@IF(A) |
Junction Temperature Tj [max] (°C) |
At Rated Forward Current IF (A) |
Reverse Voltage Leakage Current IR (uA) [max] @ VR |
Maximum DC Blocking Voltage VR (V) |
Peak Forward Surge Current IFSM (A) |
|---|---|---|---|---|---|---|---|---|---|
| SICF1060P | Single | 10 | 650 | 1.55 | 175 | 10 | 25 | 650 | 80 |
| Part Number SICF1060P | Number of Functions Single |
Average Forward Current IF(AV)(A) 10 |
Peak Repetitive Reverse Voltage VRRM (V) 650 |
Forward Voltage VF (V) [max]@IF(A) 1.55 |
Junction Temperature Tj [max] (°C) 175 |
At Rated Forward Current IF (A) 10 |
Reverse Voltage Leakage Current IR (uA) [max] @ VR 25 |
Maximum DC Blocking Voltage VR (V) 650 |
Peak Forward Surge Current IFSM (A) 80 |
Packing Information
| Part Number | Package Type | Packing Specification | Component Weight (g) | Marking Code |
|---|---|---|---|---|
| SICF1060P | ITO-220AC | ITO-220AC | 1.3930 | SICF1060P |
Environmental Information
Download
| Tin Whisker Test Report |
|---|
|
ECN/PCN
| ECN/PCN No# | Title | Issued Date | |
|---|---|---|---|
| 012923-1 | Additional new wafer source |
|
01/29/2023 |
| 080622-1 | ITO-220 Series Package Pin Dimension Change |
|
08/06/2022 |
Datasheet
