SiC Schottky Barrier Diodes (SBDs) | Status :
Active

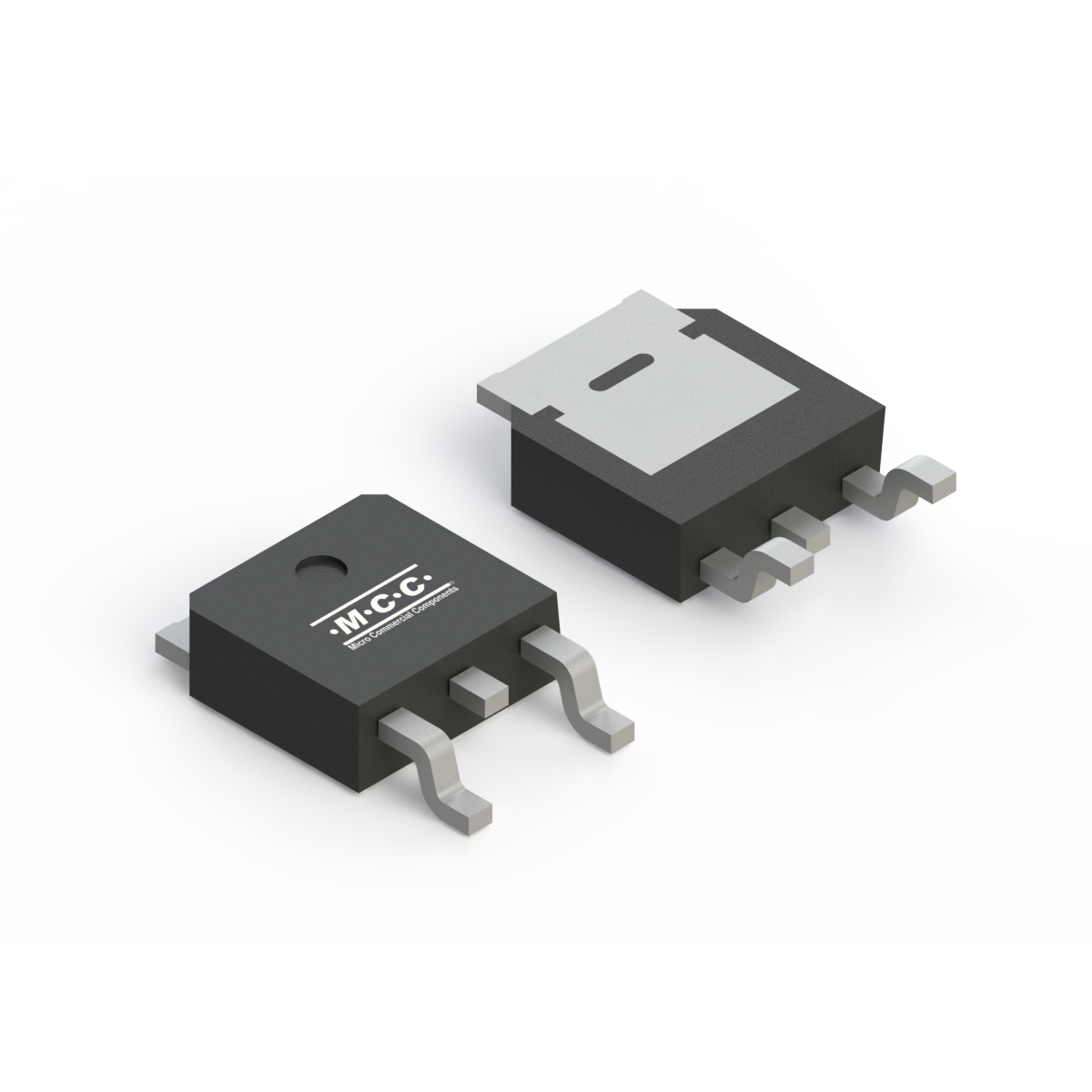

SICU0460B
- Package Type:DPAK
- Packing Info:Tape&Reel: 2.5Kpcs/Reel;
- Category:SiC Schottky Barrier Diodes (SBDs)
Product Detail
| Part Number | Number of Functions | Average Forward Current IF(AV)(A) |
Peak Repetitive Reverse Voltage VRRM (V) |
Forward Voltage VF (V) [max]@IF(A) |
Junction Temperature Tj [max] (°C) |
At Rated Forward Current IF (A) |
Reverse Voltage Leakage Current IR (uA) [max] @ VR |
Maximum DC Blocking Voltage VR (V) |
Peak Forward Surge Current IFSM (A) |
|---|---|---|---|---|---|---|---|---|---|
| SICU0460B | Single | 4 | 650 | 1.8 | 175 | 4 | 15 | 650 | 34 |
| Part Number SICU0460B | Number of Functions Single |
Average Forward Current IF(AV)(A) 4 |
Peak Repetitive Reverse Voltage VRRM (V) 650 |
Forward Voltage VF (V) [max]@IF(A) 1.8 |
Junction Temperature Tj [max] (°C) 175 |
At Rated Forward Current IF (A) 4 |
Reverse Voltage Leakage Current IR (uA) [max] @ VR 15 |
Maximum DC Blocking Voltage VR (V) 650 |
Peak Forward Surge Current IFSM (A) 34 |
Packing Information
Environmental Information
Download
| Halogen Free |
|---|
|
Datasheet
