Pre-Biased Transistors | Status :
Active

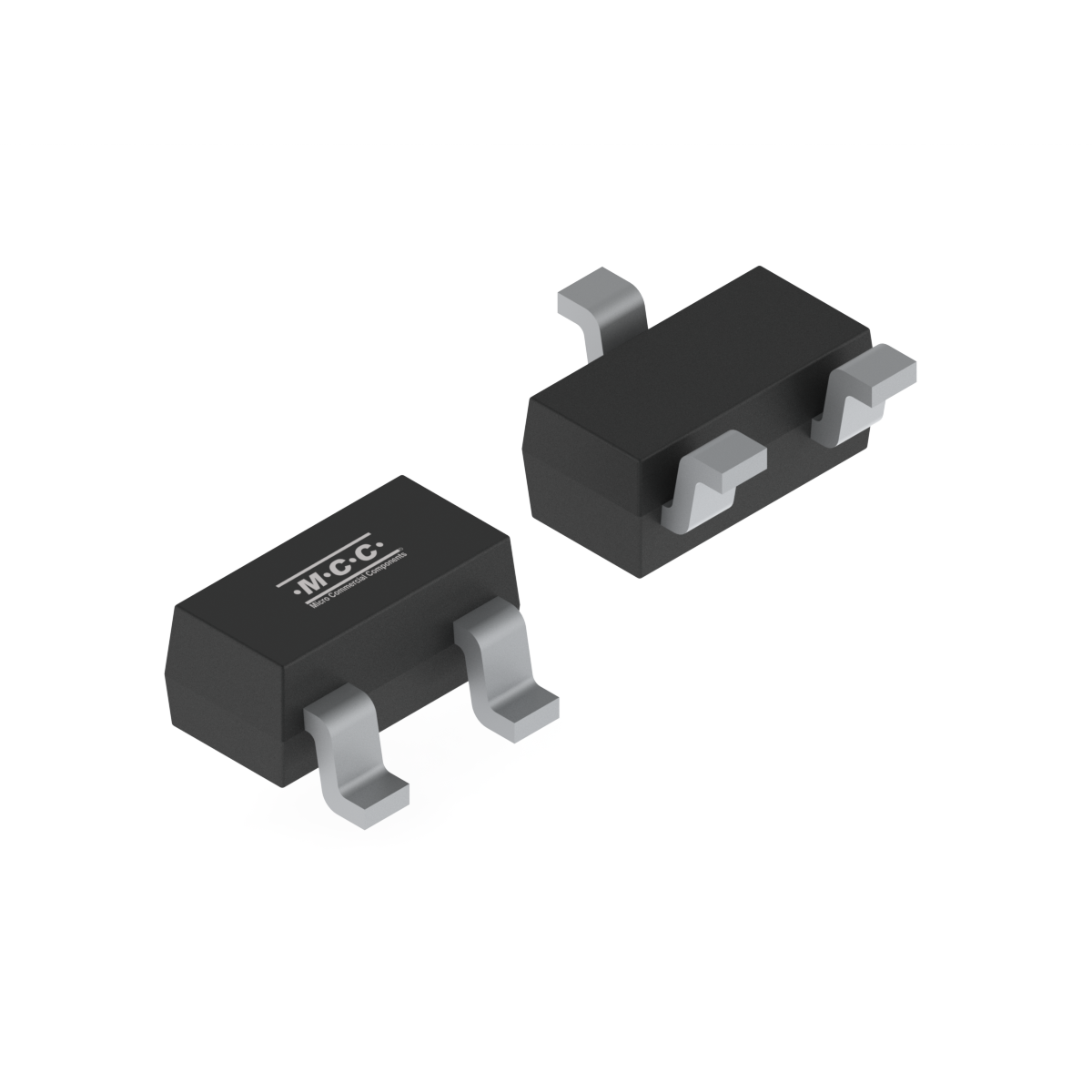

DTA114TE
- Package Type:SOT-523
- Packing Info:Tape: 3K/Reel, 120K/Ctn;
- Category:Pre-Biased Transistors
- MPN:DTA114TE-TP
Product Detail
| Part Number | Number of Functions | Polarity | IO(mA) | R1 Typ (KΩ) | R2 Typ (KΩ) | VCC(V) | fT(MHz) | PD(mW) | Tj [max] (°C) |
|---|---|---|---|---|---|---|---|---|---|
| DTA114TE | Single(R1) | PNP | -100 | 10 | -50 | 250 | 150 | 150 |
| Part Number DTA114TE | Number of Functions Single(R1) | Polarity PNP | IO(mA) -100 | R1 Typ (KΩ) 10 | R2 Typ (KΩ) | VCC(V) -50 | fT(MHz) 250 | PD(mW) 150 | Tj [max] (°C) 150 |
Packing Information
| Part Number | Package Type | Packing Specification | Component Weight (g) | Marking Code | Packing Info |
|---|---|---|---|---|---|
| DTA114TE | SOT-523 | SOT-523 | 0.0029 | 94 | Tape: 3K/Reel, 120K/Ctn; |
Environmental Information
Download
| Tin Whisker Test Report | Halogen Free |
|---|---|
|
|
ECN/PCN
| ECN/PCN No# | Title | Issued Date | |
|---|---|---|---|
| 080111 | Remove the plastic ziploc bag of the reel for SOT&SOD Packages PCN#080111 |
|
08/15/2011 |
| 070103 | Pb(Lead) Free Plating Conversion |
|
07/01/2003 |
