Pre-Biased Transistors | Status : Active

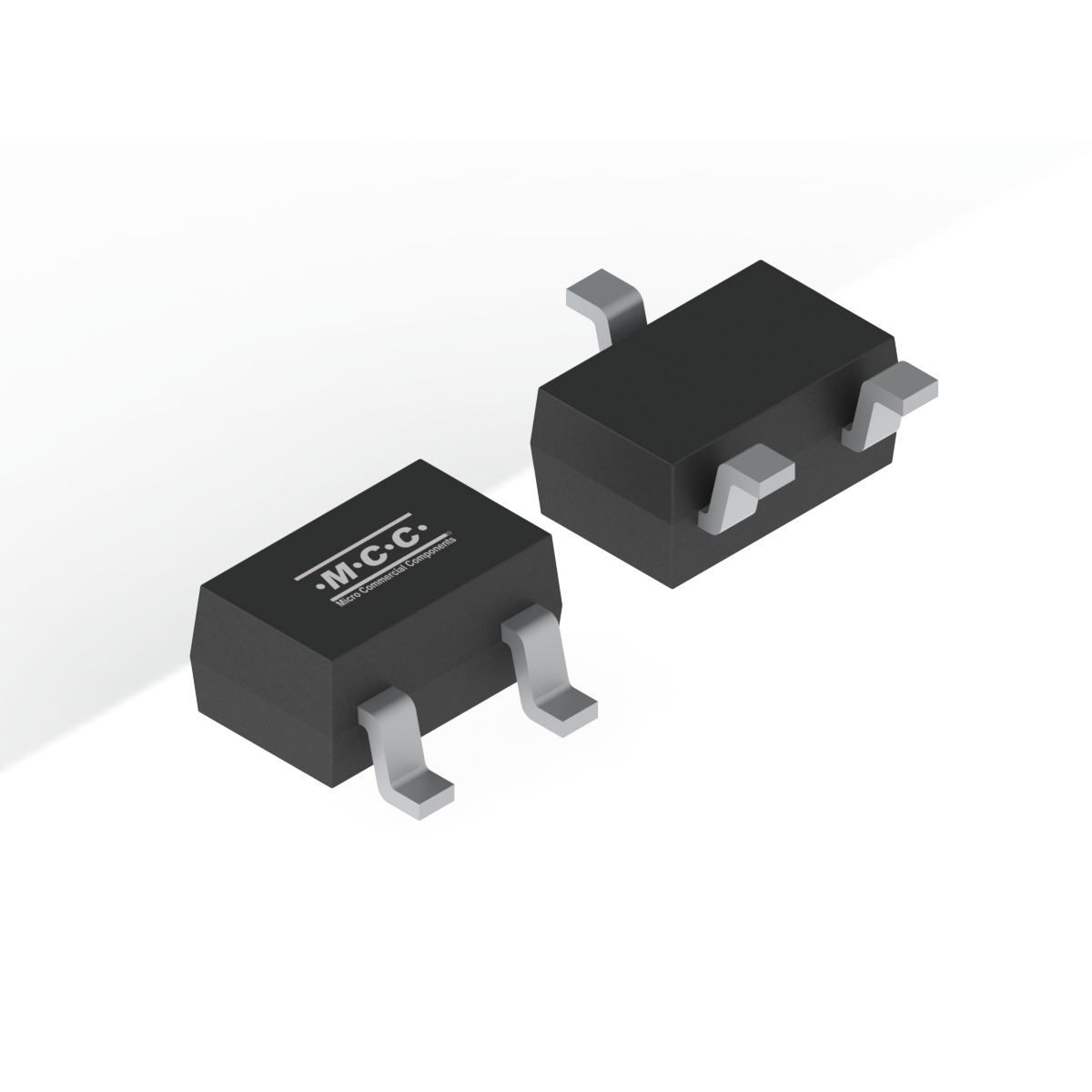

DTA114TUA

Check Stock Add To Cart
Datasheet ECAD Model

Product Detail

Part Number Number of Functions Polarity IO(mA) R1 Typ (KΩ) R2 Typ (KΩ) VCC(V) fT(MHz) PD(mW) Tj [max] (°C)
DTA114TUA Single(R1) PNP -100 10 -50 250 200 150
Part Number DTA114TUA Number of Functions Single(R1) Polarity PNP IO(mA)  -100 R1 Typ (KΩ)  10 R2 Typ (KΩ)   VCC(V)  -50 fT(MHz)  250 PD(mW)  200 Tj [max] (°C)  150

Packing Information

Part Number Package Type Packing Specification Component Weight (g) Marking Code Packing Info
DTA114TUA SOT-323 SOT-323 0.0050 94 Tape: 3K/Reel, 120K/Ctn;

Environmental Information link icon

Reliability Report Material Composition Data Sheet Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Configuration image Download Environmental Compliance Download
Tin Whisker Test Report Halogen Free
Tin Whisker Test Report Halogen Free

ECN/PCN

ECN/PCN No# Title PDF Issued Date
080111 Remove the plastic ziploc bag of the reel for SOT&SOD Packages PCN#080111 PDF 08/15/2011
070103 Pb(Lead) Free Plating Conversion PDF 07/01/2003
