Pre-Biased Transistors | Status : Active

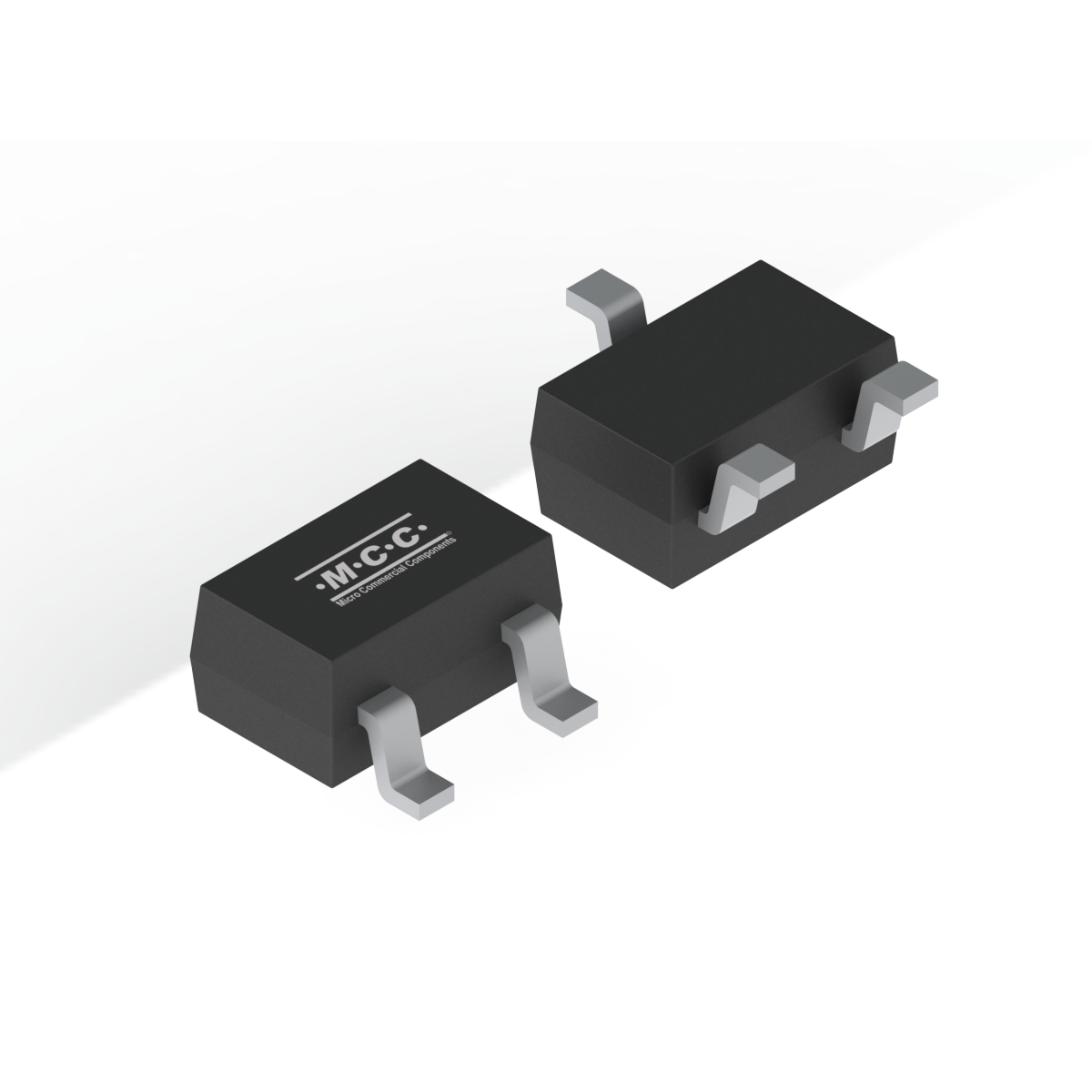

DTC114EUA

Check Stock Add To Cart
Datasheet ECAD Model

Product Detail

Part Number Number of Functions Polarity IO(mA) R1 Typ (KΩ) R2 Typ (KΩ) VCC(V) fT(MHz) PD(mW) Tj [max] (°C)
DTC114EUA Single(R1/R2) NPN 100 10 10 50 250 200 150
Part Number DTC114EUA Number of Functions Single(R1/R2) Polarity NPN IO(mA)  100 R1 Typ (KΩ)  10 R2 Typ (KΩ)  10 VCC(V)  50 fT(MHz)  250 PD(mW)  200 Tj [max] (°C)  150

Packing Information

Part Number Package Type Packing Specification Component Weight (g) Marking Code Packing Info
DTC114EUA SOT-323 SOT-323 0.0050 24 Tape: 3K/Reel, 120K/Ctn;

Environmental Information link icon

Reliability Report Material Composition Data Sheet Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Configuration image Download Environmental Compliance Download
Tin Whisker Test Report Halogen Free
Tin Whisker Test Report Halogen Free

ECN/PCN

ECN/PCN No# Title PDF Issued Date
080111 Remove the plastic ziploc bag of the reel for SOT&SOD Packages PCN#080111 PDF 08/15/2011
070103 Pb(Lead) Free Plating Conversion PDF 07/01/2003
