Small Signal MOSFETS | Status : Active

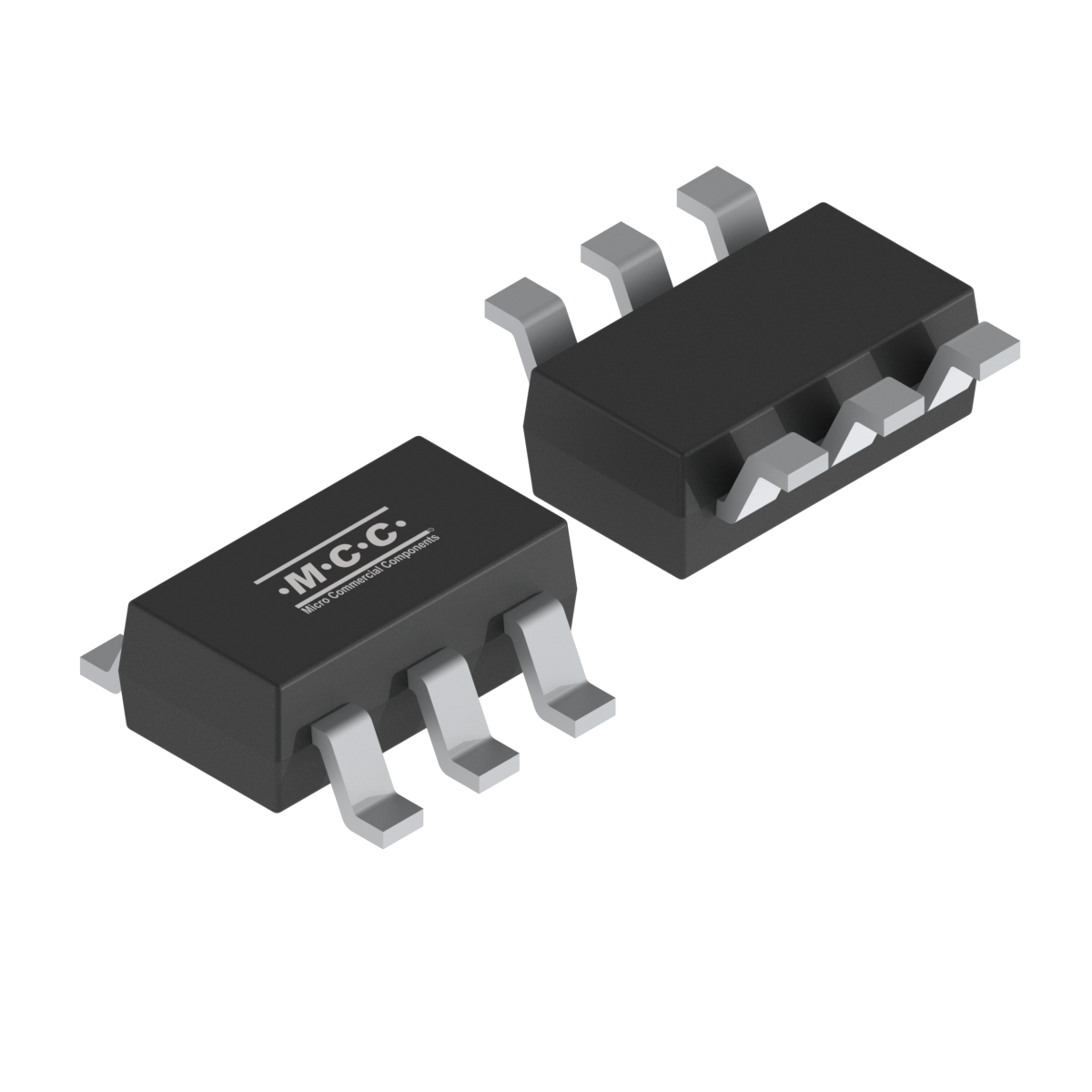

SIL2308

Check Stock Add To Cart
Datasheet ECAD Model Spice Model Reliability Data

Product Detail

Part Number Number of Functions Channel Drain-Source
Voltage
VDS (V)		 Gate-Source
Voltage
VGS (V)		 Drain
Current
ID (A)		 RDS(ON)
Max
@VGS=10V
(Ω)		 RDS(ON)
Max
@VGS=4.5V
(Ω)		 RDS(ON)
Max
@VGS=2.5V
(Ω)		 Gate
Threshold
Voltage
VGS(th) Min
(V)		 Gate
Threshold
Voltage
VGS(th) Max
(V)		 ESD
Diodes		 Junction
Temperature
Tj [max]
(°C)		 Input
Capacitance
Ciss(pF)		 Output
Capacitance
Coss(pF)		 Power
Rating
PD(W)		 Total Gate
Charge
Qg(nC)		 Gate-Drain
Charge
Qgd(nC)
SIL2308 Dual N+P 20/-20 ±10/±12 5/-4 0.025/0.064 0.032/0.080 0.5/-0.5 1/-1 No 150 386/490 71/69 1.05 5.4/5.8 1.5/1.2
Part Number SIL2308 Number of Functions Dual Channel N+P Drain-Source
Voltage
VDS (V)  20/-20 		Gate-Source
Voltage
VGS (V)  ±10/±12 		Drain
Current
ID (A)  5/-4 		RDS(ON)
Max
@VGS=10V
(Ω)   		RDS(ON)
Max
@VGS=4.5V
(Ω)  0.025/0.064 		RDS(ON)
Max
@VGS=2.5V
(Ω)  0.032/0.080 		Gate
Threshold
Voltage
VGS(th) Min
(V)  0.5/-0.5 		Gate
Threshold
Voltage
VGS(th) Max
(V)  1/-1 		ESD
Diodes  No 		Junction
Temperature
Tj [max]
(°C)  150

Packing Information

Part Number Package Type Packing Specification Component Weight (g) Marking Code Packing Info
SIL2308 SOT23-6L SOT23-6L 0.0110 2038 DE Tape&Reel;

Environmental Information link icon

Reliability Report Material Composition Data Sheet Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Configuration image Download Environmental Compliance Download
MTBF FIT
17486.81 6.5
