Standard Recovery Power Modules | Status : Active

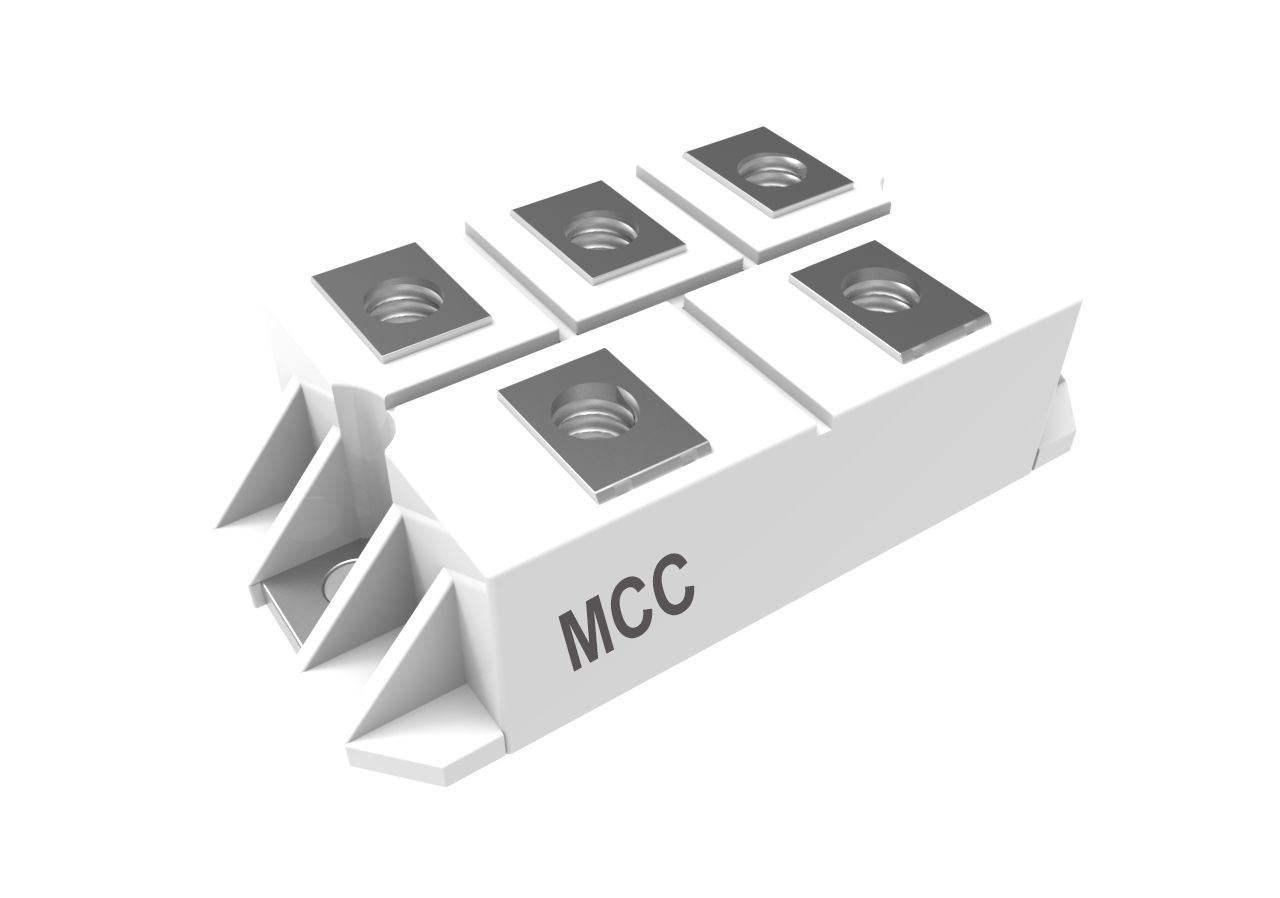

MD100S18M4

Check Stock Add To Cart
Datasheet ECAD Model

Product Detail

Part Number Number of Functions VRRM (V) IF(AV)(A)@Tc (°C) IFSM (A) VFM (V) IF(A) IRD (mA) VRD (V) Tc (°C) TVj [max] (°C)
MD100S18M4 3-Phase Bridge 1800 100 920 1.9 300 5 1800 100 150
Part Number MD100S18M4 Number of Functions 3-Phase Bridge VRRM (V)  1800 IF(AV)(A)@Tc (°C)  100 IFSM (A)  920 VFM (V)  1.9 IF(A)  300 IRD (mA)  5 VRD (V)  1800 Tc (°C)  100 TVj [max] (°C)  150

Packing Information

Part Number Package Type Packing Specification Component Weight (g) Marking Code
MD100S18M4 M4 M4 138.3340 MD100S18M4

Environmental Information link icon

Reliability Report Material Composition Data Sheet Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Configuration image Download Environmental Compliance Download
