ESD Protection Devices | Status :
Active
CSPSBHC4V8LB

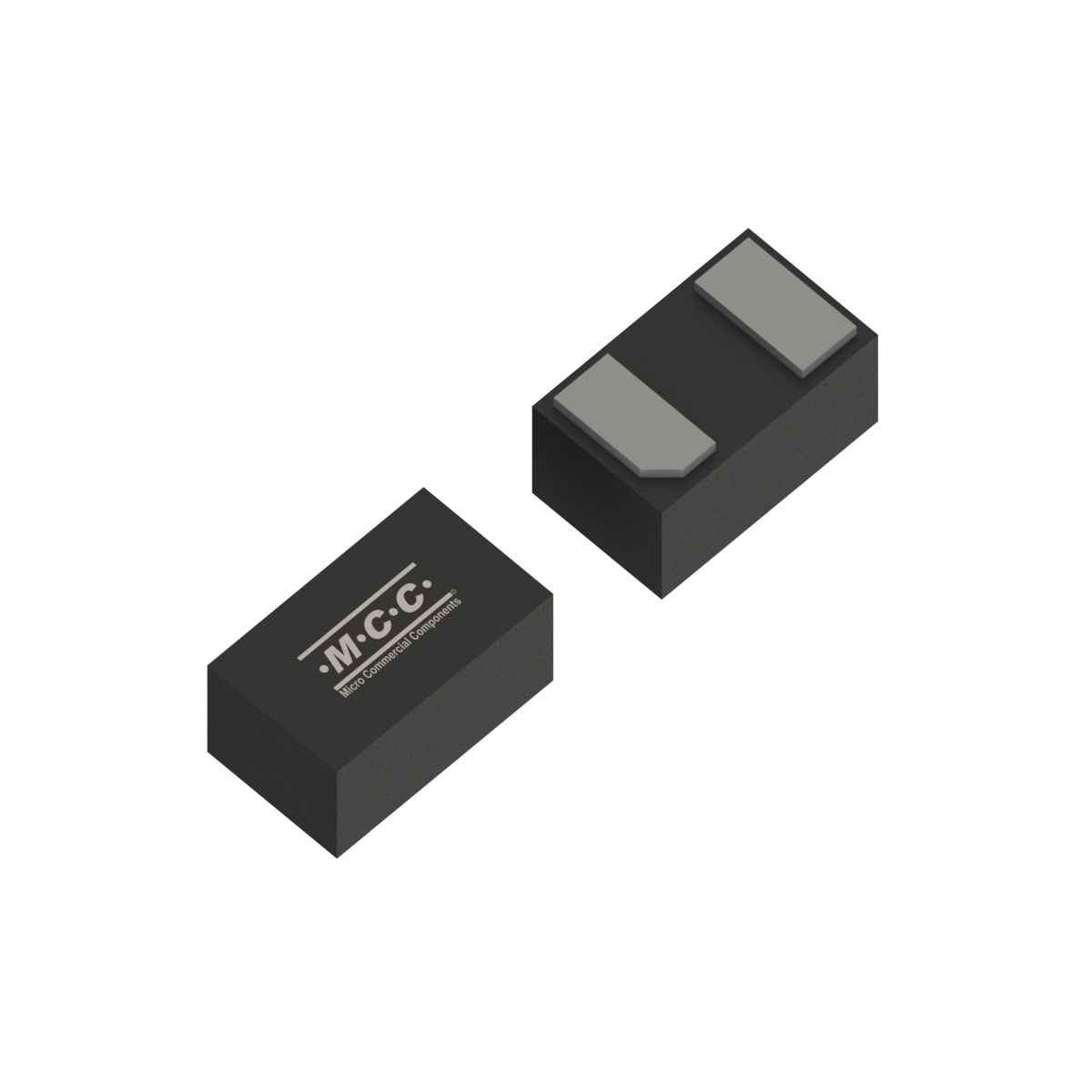

- Package Type:CSP1006-2
- Packing Info:Tape&Reel: 10Kpcs/Reel;
- Category:ESD Protection Devices
Product Detail
| Part Number | Number of Functions | Configuration | Reverse Standoff Voltage VRWM(V) |
Peak Pulse Current IPP(A) |
Max. Clamping Voltage VC (V) |
Junction Capacitance CJ(pF) |
Peak Pluse Power Dissipation PPPK (W) |
Maximum Reverse Leakage IR (uA) |
Breakdown Voltage Min VBR(V) |
Breakdown Voltage Max VBR(V) |
Junction Temperature Tj [max] (°C) |
VESDIEC61000-4-2 Air/Contact (kV) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CSPSBHC4V8LB | 1 | Bidirectional | 4.8 | 100 | 16 | 200 | 1600 | 0.5 | 5 | 7 | 125 | ±30 |
| Part Number CSPSBHC4V8LB | Number of Functions 1 | Configuration Bidirectional |
Reverse Standoff Voltage VRWM(V) 4.8 |
Peak Pulse Current IPP(A) 100 |
Max. Clamping Voltage VC (V) 16 |
Junction Capacitance CJ(pF) 200 |
Peak Pluse Power Dissipation PPPK (W) 1600 |
Maximum Reverse Leakage IR (uA) 0.5 |
Breakdown Voltage Min VBR(V) 5 |
Breakdown Voltage Max VBR(V) 7 |
Junction Temperature Tj [max] (°C) 125 |
VESDIEC61000-4-2 Air/Contact (kV) ±30 |
Packing Information
Download
