ESD Protection Devices | Status :
Active

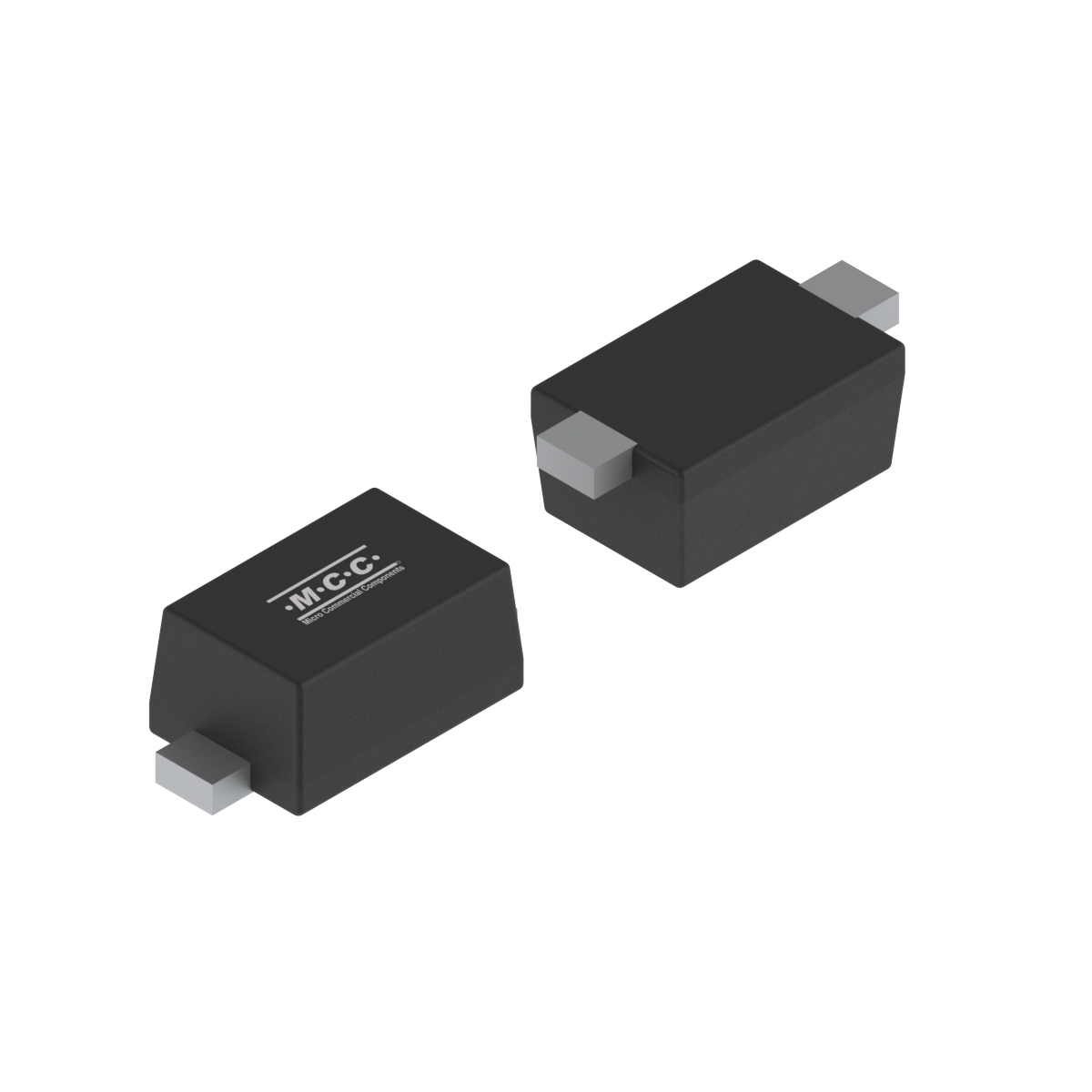

ESD15VD5
- Package Type:SOD-523
- Packing Info:Tape : 8K/Reel, 320K/Ctn;
- Category:ESD Protection Devices
Product Detail
| Part Number | Number of Functions | Configuration | Reverse Standoff Voltage VRWM(V) |
Peak Pulse Current IPP(A) |
Max. Clamping Voltage VC (V) |
Junction Capacitance CJ(pF) |
Peak Pluse Power Dissipation PPPK (W) |
Maximum Reverse Leakage IR (uA) |
Breakdown Voltage Min VBR(V) |
Breakdown Voltage Max VBR(V) |
Junction Temperature Tj [max] (°C) |
VESDIEC61000-4-2 Air/Contact (kV) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ESD15VD5 | 1 | Unidirectional | 15 | 11 | 32 | 80 | 350 | 0.2 | 18 | 23 | 125 | ±30 |
| Part Number ESD15VD5 | Number of Functions 1 | Configuration Unidirectional |
Reverse Standoff Voltage VRWM(V) 15 |
Peak Pulse Current IPP(A) 11 |
Max. Clamping Voltage VC (V) 32 |
Junction Capacitance CJ(pF) 80 |
Peak Pluse Power Dissipation PPPK (W) 350 |
Maximum Reverse Leakage IR (uA) 0.2 |
Breakdown Voltage Min VBR(V) 18 |
Breakdown Voltage Max VBR(V) 23 |
Junction Temperature Tj [max] (°C) 125 |
VESDIEC61000-4-2 Air/Contact (kV) ±30 |
Packing Information
Environmental Information
Download
| Halogen Free |
|---|
|
