ESD Protection Devices | Status :
Active
ESD15VL

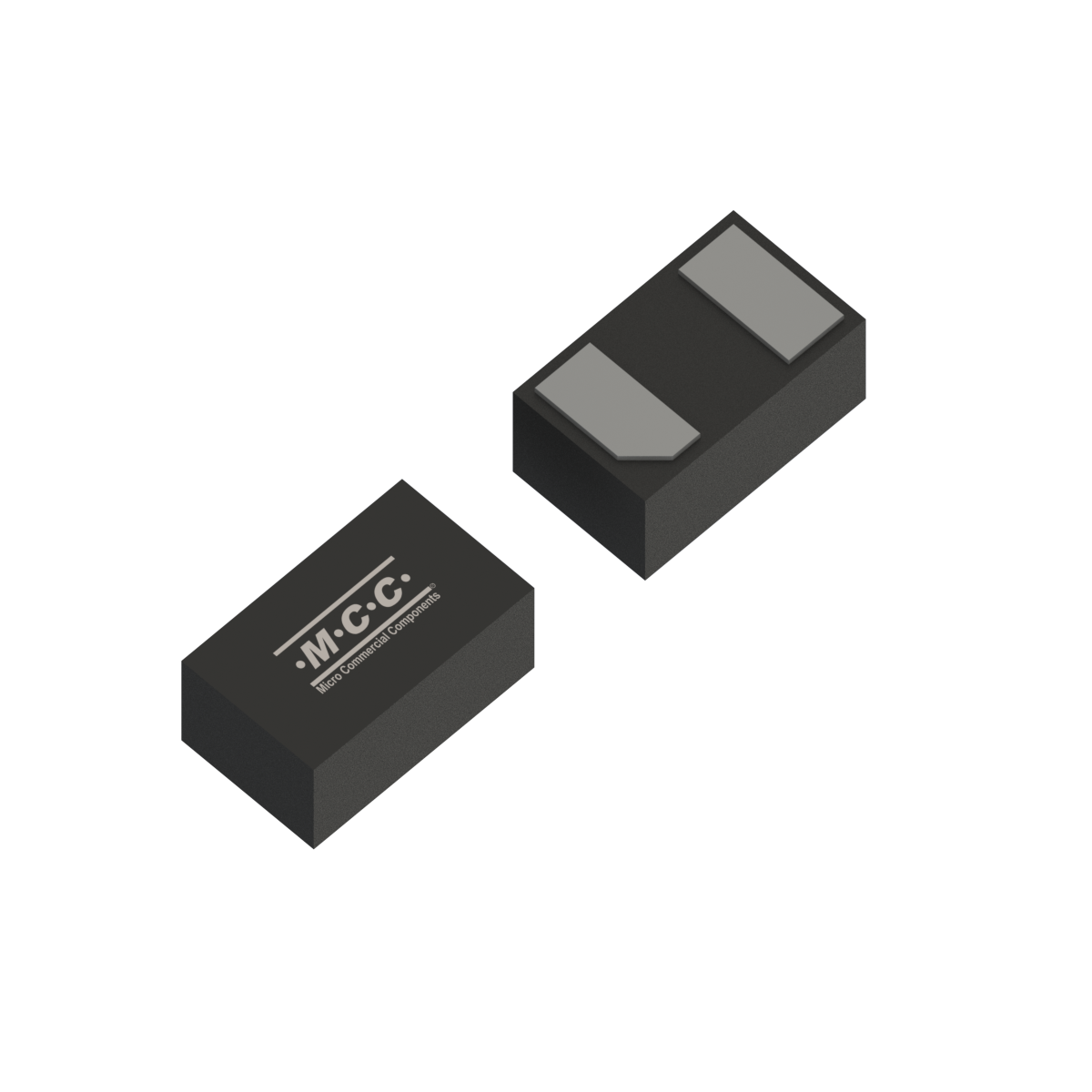

- Package Type:DFN1006-2
- Packing Info:Tape&Reel: 10Kpcs/Reel;
- Category:ESD Protection Devices
- MPN:ESD15VL-TP
Product Detail
| Part Number | Number of Functions | Configuration | Reverse Standoff Voltage VRWM(V) |
Peak Pulse Current IPP(A) |
Max. Clamping Voltage VC (V) |
Junction Capacitance CJ(pF) |
Peak Pluse Power Dissipation PPPK (W) |
Maximum Reverse Leakage IR (uA) |
Breakdown Voltage Min VBR(V) |
Breakdown Voltage Max VBR(V) |
Junction Temperature Tj [max] (°C) |
VESDIEC61000-4-2 Air/Contact (kV) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ESD15VL | 1 | Unidirectional | 15 | 10 | 30 | 65 | 300 | 0.5 | 16.7 | 20 | 125 | ±30 |
| Part Number ESD15VL | Number of Functions 1 | Configuration Unidirectional |
Reverse Standoff Voltage VRWM(V) 15 |
Peak Pulse Current IPP(A) 10 |
Max. Clamping Voltage VC (V) 30 |
Junction Capacitance CJ(pF) 65 |
Peak Pluse Power Dissipation PPPK (W) 300 |
Maximum Reverse Leakage IR (uA) 0.5 |
Breakdown Voltage Min VBR(V) 16.7 |
Breakdown Voltage Max VBR(V) 20 |
Junction Temperature Tj [max] (°C) 125 |
VESDIEC61000-4-2 Air/Contact (kV) ±30 |
Packing Information
| Part Number | Package Type | Packing Specification | Component Weight (g) | Marking Code | Packing Info |
|---|---|---|---|---|---|
| ESD15VL | DFN1006-2 | DFN1006-2 | 0.0011 | 15P | Tape&Reel: 10Kpcs/Reel; |
Environmental Information
Download
| Halogen Free |
|---|
|
