ESD Protection Devices | Status :
Active
ESDHC15VP4

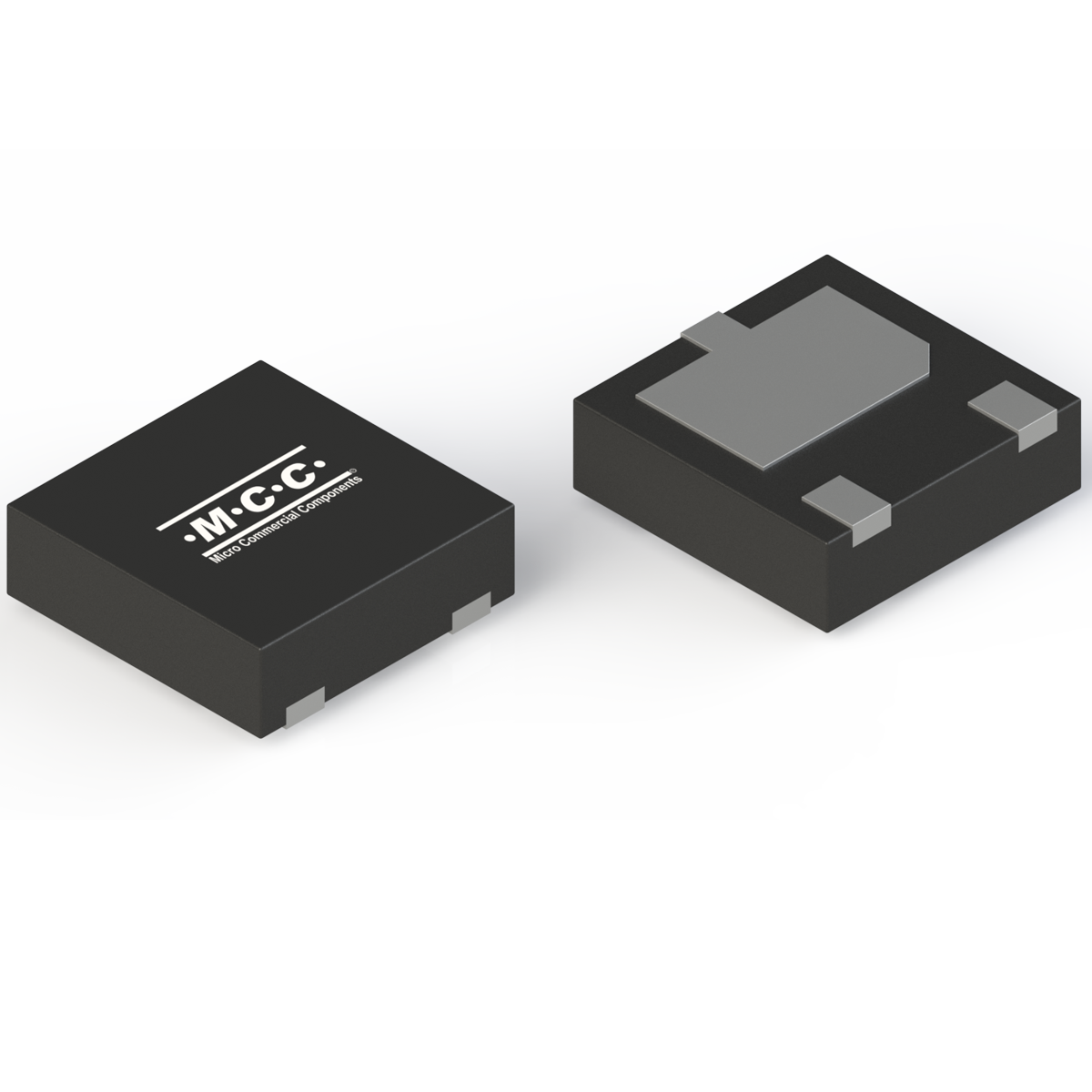

- Package Type:DFN2020-3L
- Packing Info: Tape&Reel: 3Kpcs/Reel;
- Category:ESD Protection Devices
Product Detail
| Part Number | Number of Functions | Configuration | Reverse Standoff Voltage VRWM(V) |
Peak Pulse Current IPP(A) |
Max. Clamping Voltage VC (V) |
Junction Capacitance CJ(pF) |
Peak Pluse Power Dissipation PPPK (W) |
Maximum Reverse Leakage IR (uA) |
Breakdown Voltage Min VBR(V) |
Breakdown Voltage Max VBR(V) |
Junction Temperature Tj [max] (°C) |
VESDIEC61000-4-2 Air/Contact (kV) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ESDHC15VP4 | 1 | Unidirectional | 15 | 170 | 35 | 1050 | 5000 | 0.5 | 16 | 19 | 125 | ±30 |
| Part Number ESDHC15VP4 | Number of Functions 1 | Configuration Unidirectional |
Reverse Standoff Voltage VRWM(V) 15 |
Peak Pulse Current IPP(A) 170 |
Max. Clamping Voltage VC (V) 35 |
Junction Capacitance CJ(pF) 1050 |
Peak Pluse Power Dissipation PPPK (W) 5000 |
Maximum Reverse Leakage IR (uA) 0.5 |
Breakdown Voltage Min VBR(V) 16 |
Breakdown Voltage Max VBR(V) 19 |
Junction Temperature Tj [max] (°C) 125 |
VESDIEC61000-4-2 Air/Contact (kV) ±30 |
Packing Information
| Part Number | Package Type | Packing Specification | Component Weight (g) | Marking Code | Packing Info |
|---|---|---|---|---|---|
| ESDHC15VP4 | DFN2020-3L | DFN2020-3L | 0.0064 | T15 | Tape&Reel: 3Kpcs/Reel; |
Environmental Information
Download
| Halogen Free |
|---|
|
