SiC Schottky Barrier Diodes (SBDs) | Status :
Active

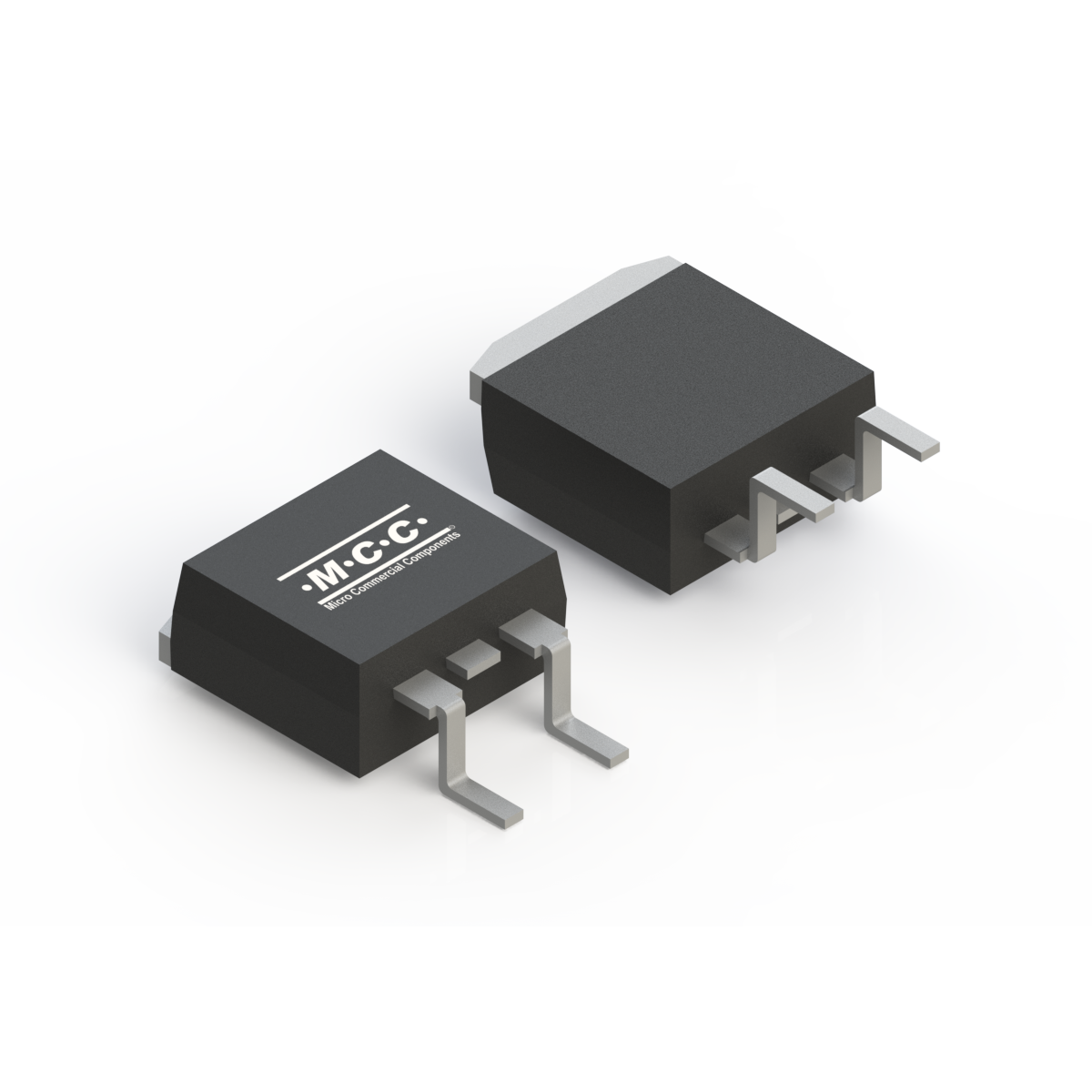

SICB5060XY
- Package Type:D2-PAK
- Packing Info: Tape&Reel: 800pcs/Reel;
- Category:SiC Schottky Barrier Diodes (SBDs)
Product Detail
| Part Number | Number of Functions | Average Forward Current IF(AV)(A) |
Peak Repetitive Reverse Voltage VRRM (V) |
Forward Voltage VF (V) [max]@IF(A) |
Junction Temperature Tj [max] (°C) |
At Rated Forward Current IF (A) |
Reverse Voltage Leakage Current IR (uA) [max] @ VR |
Maximum DC Blocking Voltage VR (V) |
Peak Forward Surge Current IFSM (A) |
|---|---|---|---|---|---|---|---|---|---|
| SICB5060XY | Single | 50 | 650 | 1.6 | 1 | -55~+175 | 25 | 380 |
| Part Number SICB5060XY | Number of Functions Single |
Average Forward Current IF(AV)(A) 50 |
Peak Repetitive Reverse Voltage VRRM (V) 650 |
Forward Voltage VF (V) [max]@IF(A) 1.6 |
Junction Temperature Tj [max] (°C) 1 |
At Rated Forward Current IF (A) -55~+175 |
Reverse Voltage Leakage Current IR (uA) [max] @ VR 25 |
Maximum DC Blocking Voltage VR (V) |
Peak Forward Surge Current IFSM (A) 380 |
Packing Information
Environmental Information
Download
| Halogen Free |
|---|
|
Datasheet
