SiC Schottky Barrier Diodes (SBDs) | Status :
Active

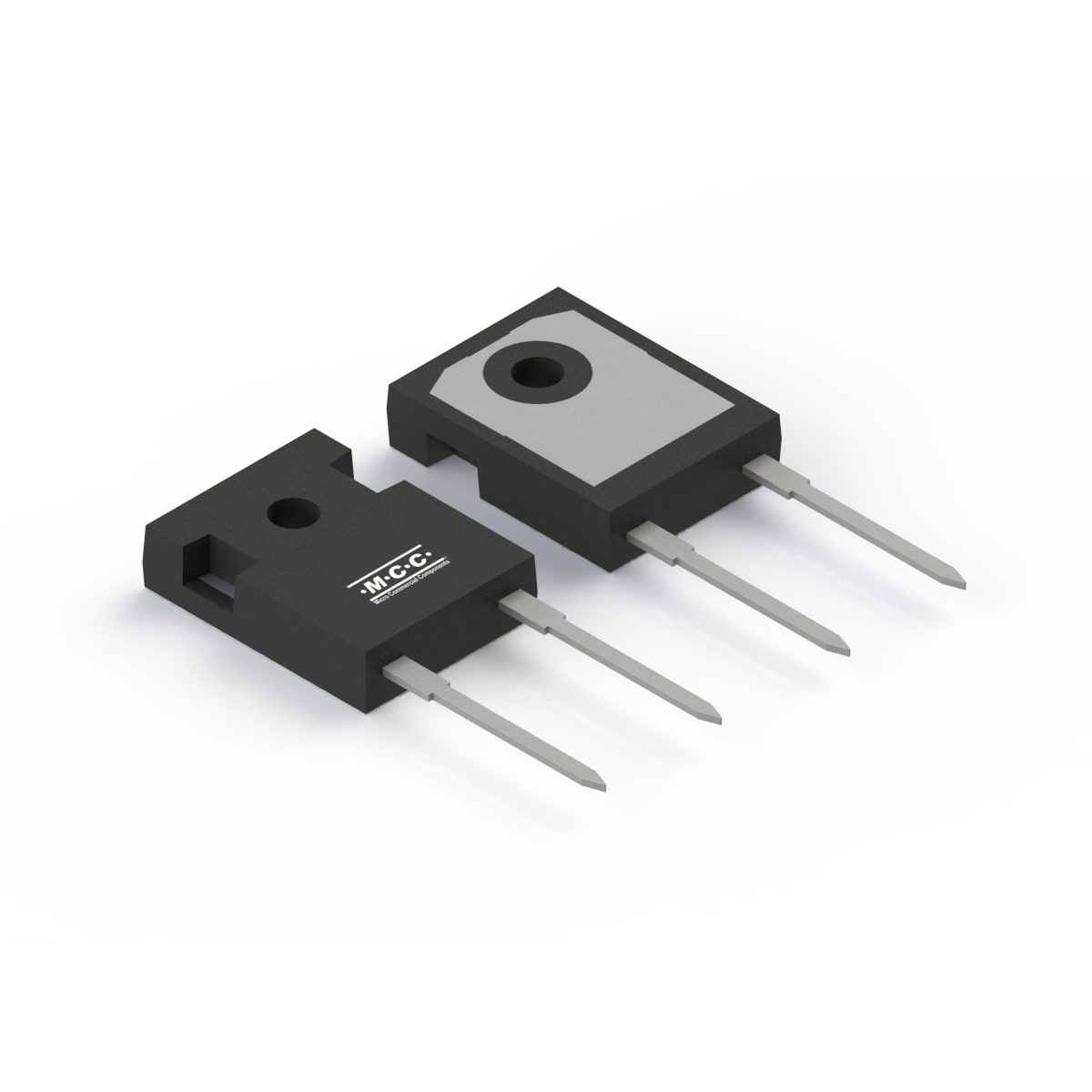

SICPT5060Y
- Package Type:TO-247AD
- Packing Info:Bulk:360pcs/Box;
- Category:SiC Schottky Barrier Diodes (SBDs)
Product Detail
| Part Number | Number of Functions | Average Forward Current IF(AV)(A) |
Peak Repetitive Reverse Voltage VRRM (V) |
Forward Voltage VF (V) [max]@IF(A) |
Junction Temperature Tj [max] (°C) |
At Rated Forward Current IF (A) |
Reverse Voltage Leakage Current IR (uA) [max] @ VR |
Maximum DC Blocking Voltage VR (V) |
Peak Forward Surge Current IFSM (A) |
|---|---|---|---|---|---|---|---|---|---|
| SICPT5060Y | Single | 50 | 650 | 1.6 | 175 | 50 | 25 | 650 | 380 |
| Part Number SICPT5060Y | Number of Functions Single |
Average Forward Current IF(AV)(A) 50 |
Peak Repetitive Reverse Voltage VRRM (V) 650 |
Forward Voltage VF (V) [max]@IF(A) 1.6 |
Junction Temperature Tj [max] (°C) 175 |
At Rated Forward Current IF (A) 50 |
Reverse Voltage Leakage Current IR (uA) [max] @ VR 25 |
Maximum DC Blocking Voltage VR (V) 650 |
Peak Forward Surge Current IFSM (A) 380 |
Packing Information
Environmental Information
Download
| Tin Whisker Test Report |
|---|
|
Datasheet
